描述

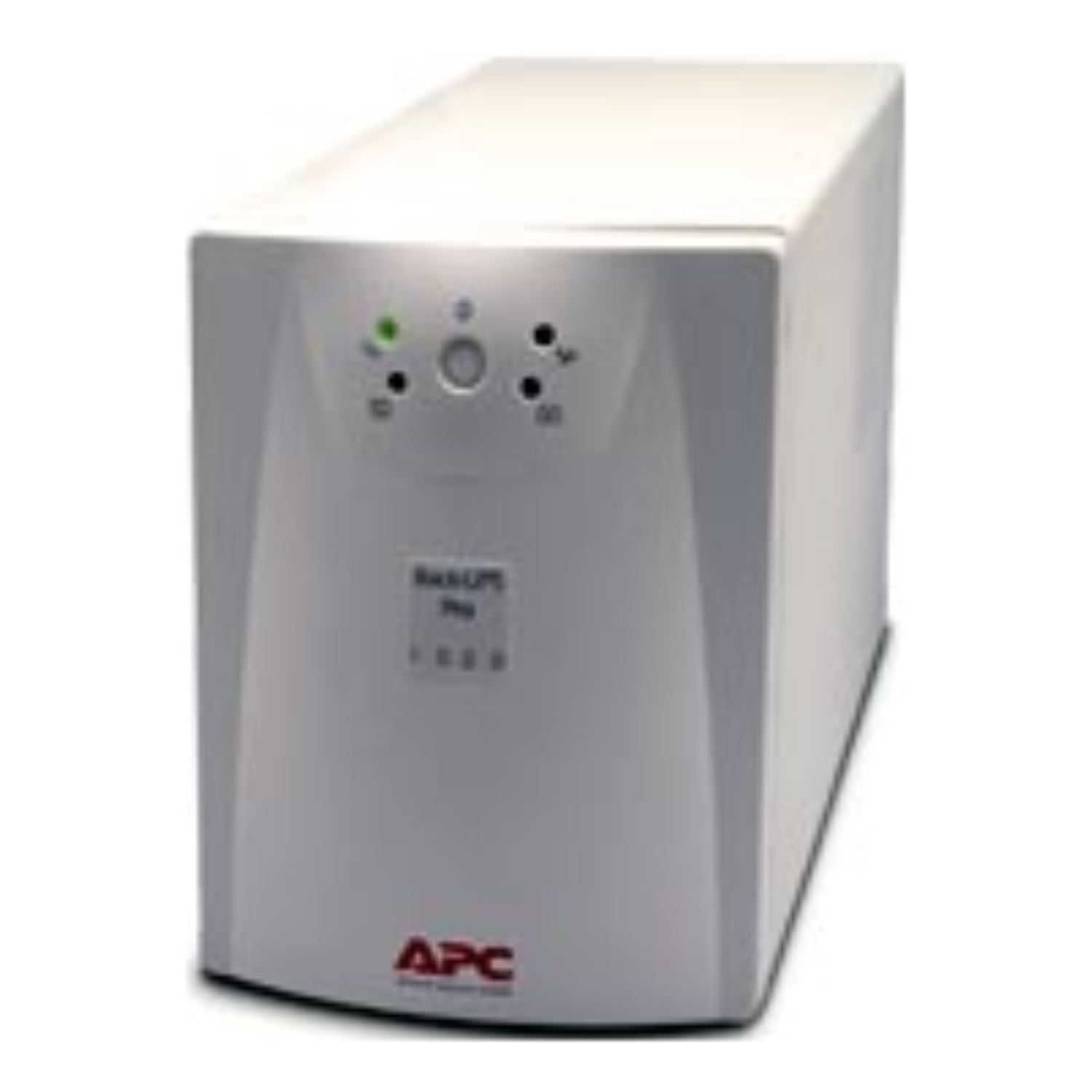

BP1000I
Back-UPS Pro 1000VA, 230V
BP1000I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Efficiency at full load | 175…295 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Rated power in W | 670 W |
| Rated power in VA | 1000 VA |
| Output connection | 4 IEC 60320 C13; 2 IEC Jumpers |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 670 W |
| Transfer time | 2 ms typical |
| UPS topology | Line interactive |
| Replacement battery | RBC6 |
補充規格
| Free slot | 0 |
|---|---|
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Surge energy rating | 320 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Color | Beige |
| Height | 21.6 cm |
| Width | 17 cm |
| Depth | 43.9 cm |
| Product weight | 18.95 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | No |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS Pro |
使用環境
| Product certification | CE; TÜV; VDE |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 50 dBA |
| Heat dissipation | 60 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3.3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 79 W rated |
