BP650SI

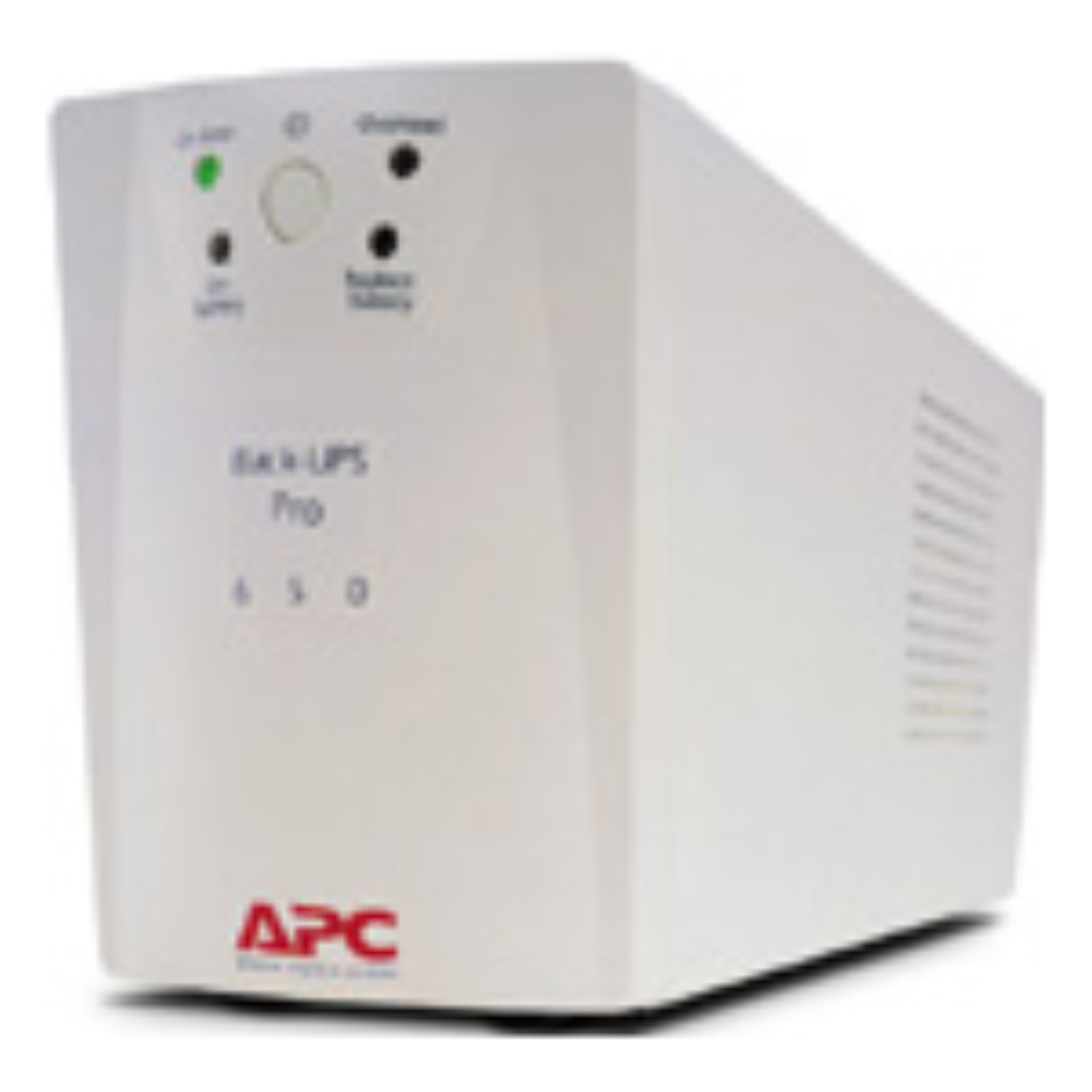

Back-UPS Pro 650VA, 230V

BP650SI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Efficiency at full load	151…302 V adjustable; 160…280 V
Input frequency	50/60 Hz +/- 5 Hz auto-sensing
Rated power in W	410 W
Rated power in VA	650 VA
Output connection	3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC Jumpers
Maximum configurable power in VA	650 VA
Maximum configurable power in W	410 W
Transfer time	2 ms typical
UPS topology	Line interactive
Replacement battery	RBC4

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Free slot	0
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating	290 J
Noise filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Number of cables	1
Color	Beige
Height	16.8 cm
Width	11.9 cm
Depth	36.8 cm
Product weight	10.68 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	No
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS Pro

Product certification	A-Tick; C-Tick; CE; GOST; VDE
Equipment protection policy	Lifetime : 100000 euros; Lifetime : 50000 GBP
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	70 Btu/h
Operating altitude	0…10000 ft
