描述
BK325I

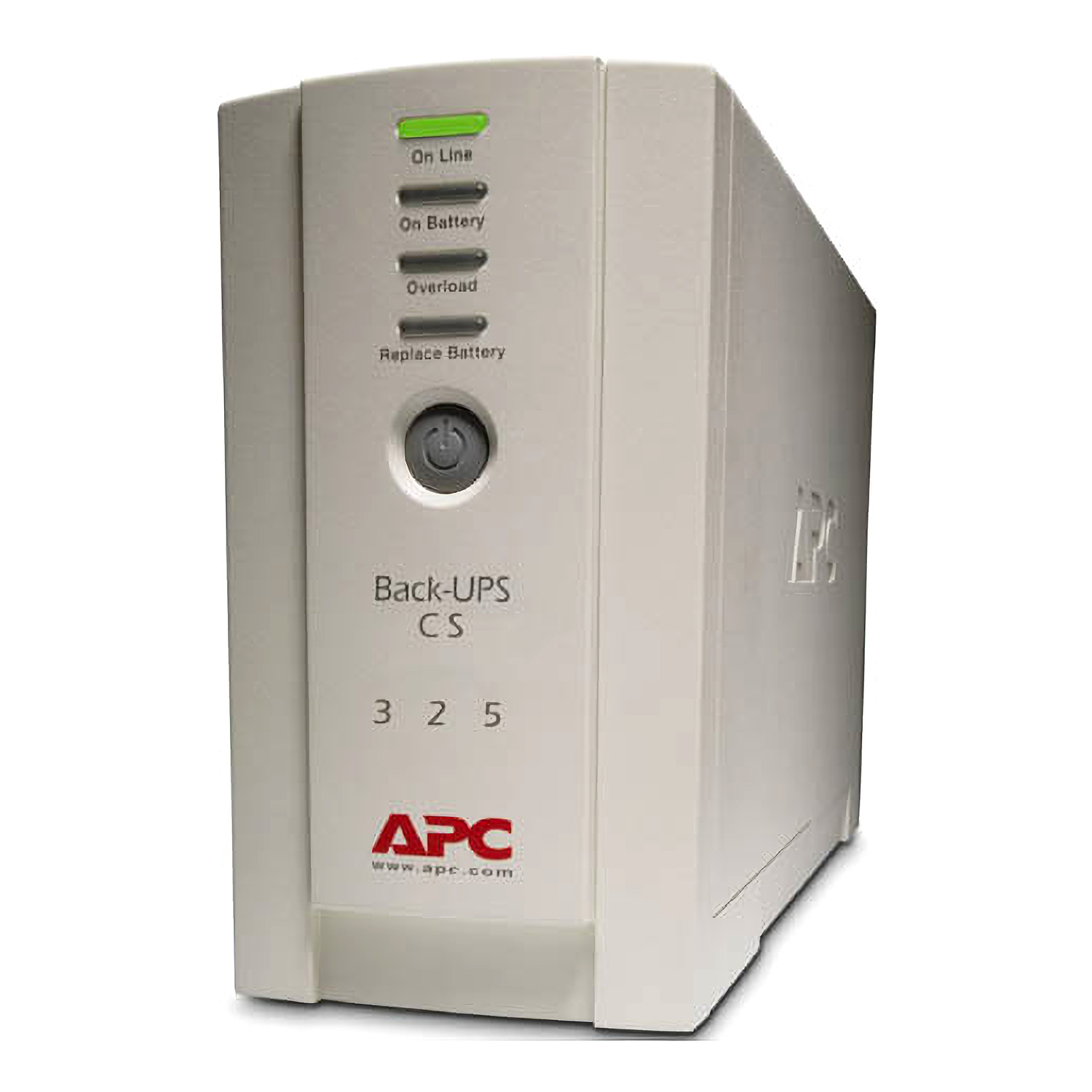

Back-UPS CS 325VA, 230V, without auto shutdown software, 4 IEC outlets (1 surge)
BK325I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Can you tell me about the APC Back-UPS 325VA (BK325I) and what makes it unique? The APC Back-UPS 325VA (BK325I) is a compact uninterruptible power supply (UPS) designed to protect home office and small business electronics from power outages, voltage fluctuations, and power surges. It provides reliable battery backup and surge protection for essential devices such as desktop computers, networking equipment, and peripherals. One of its key advantages is its combination of battery-backed and surge-only outlets, helping users maintain productivity and safeguard valuable equipment during unexpected power interruptions. What are the key technical specifications of the APC Back-UPS 325VA (BK325I)? The BK325I delivers 325VA / 195W rated power with a maximum configurable output of 210W. It features four IEC outlets, including three battery backup and surge-protected outlets plus one surge-protection-only outlet. The UPS uses a sealed lead-acid battery and provides runtime support during short power outages. The unit also includes LED status indicators, audible alarms, full-time noise filtering, and 310 Joules of surge protection for connected equipment. What benefits does the APC Back-UPS 325VA (BK325I) offer? The APC Back-UPS 325VA helps protect critical electronics from data loss and hardware damage caused by blackouts, and electrical surges. Its compact tower design makes it easy to deploy in space-constrained environments, while the battery backup provides valuable time to save w
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Efficiency at full load | 180…266 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 195 W |
| Rated power in VA | 325 VA |
| Output connection | 3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC 60320 |
| Type of USB power supply | None |
| Maximum configurable power in VA | 350 VA |
| Maximum configurable power in W | 210 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 47…63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised |
| Replacement battery | RBC2 |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | LED Status display with on line : on battery |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Surge energy rating | 310 J |
| Noise filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Color | Beige |
| Height | 165 mm |
| Width | 91 mm |
| Depth | 284 mm |
| Product weight | 5.73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Tower |
| Provided equipment | 2 x detachable IEC C13 to IEC C14 power cords; User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Heat dissipation | 19 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 6 h |
| RBC quantity | 1 |
| Battery life | 4…6 year(s) |
| Battery charging power | 14 W rated |
