描述

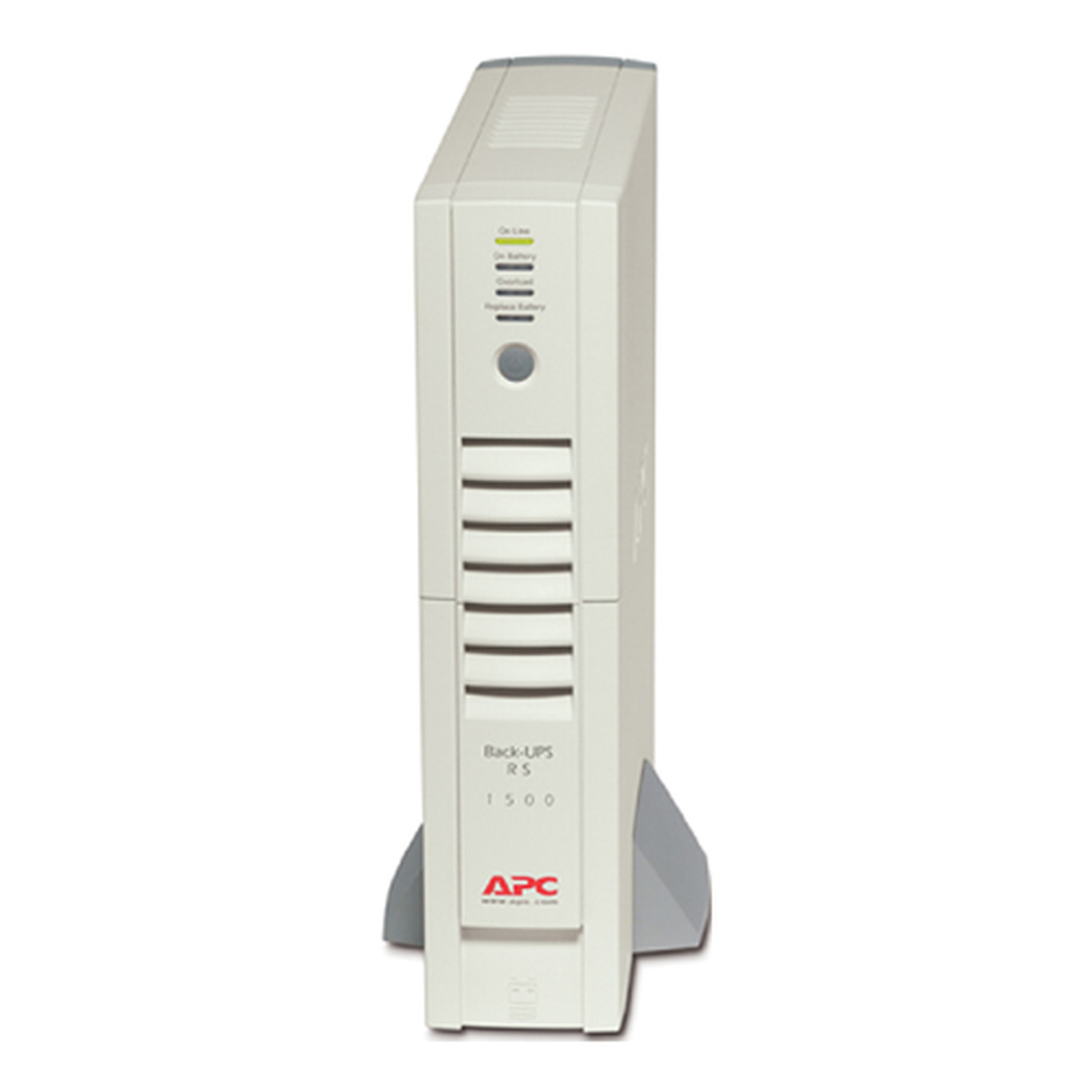

BR1500I

Back-UPS RS 1500VA, 230V

BR1500I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Efficiency at full load	160…286 V adjustable; 175…295 V
Input frequency	47…63 Hz
Rated power in W	865 W
Rated power in VA	1500 VA
Output connection	6 IEC 60320 C13; 2 IEC 60320 C13 surge
Maximum configurable power in VA	1500 VA
Maximum configurable power in W	865 W
Maximum output current	10 A
UPS topology	Line interactive
Replacement battery	RBC33

Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Data line protection	RJ11 modem/fax/DSL protection (two wire single line)
Surge energy rating	180 J
Noise filtering	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	2U
Number of cables	1
Color	Beige
Height	37.1 cm
Width	8.6 cm
Depth	33.3 cm
Product weight	11.59 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	No
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No

Product certification	A-Tick; C-Tick; CE; GOST; VDE
Equipment protection policy	Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-5…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	180 Btu/h
Operating altitude	0…10000 ft
