描述

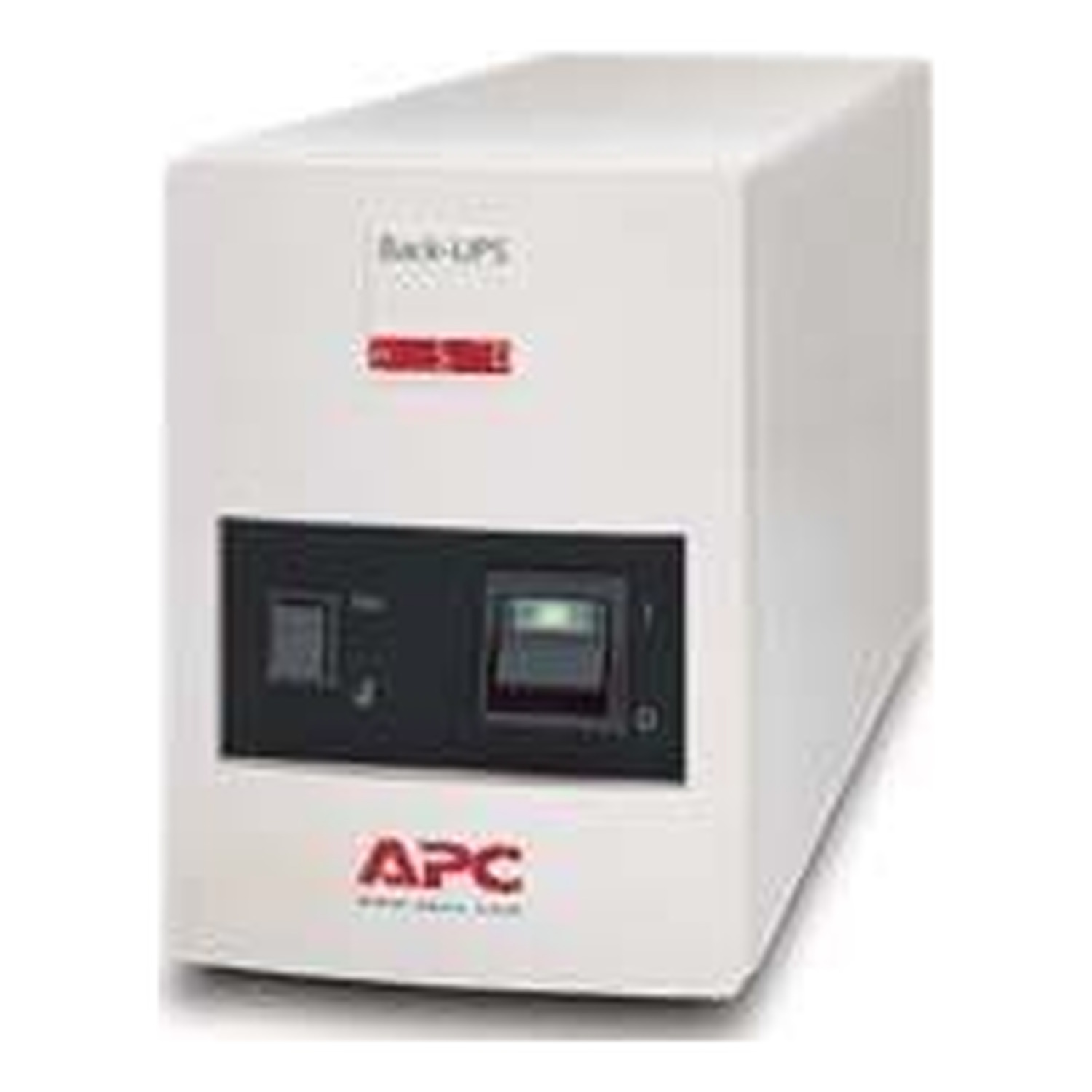

BK650MI

Back-UPS 650VA, 230V

BK650MI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Input connection	IEC 60320 C14
Efficiency at full load	160…286 V adjustable; 196…280 V
Input frequency	50/60 Hz +/- 5 Hz manual switch
Output voltage	230 V
Rated power in W	400 W
Rated power in VA	650 VA
Output connection	3 IEC 60320 C13; 2 IEC 60320; 1 IEC 60320 C13 surge
Maximum configurable power in VA	650 VA
Maximum configurable power in W	400 W
Transfer time	4 ms typical : 8 ms maximum
UPS topology	Standby

Control panel	Output power on indicator LED
Free slot	0
Surge energy rating	300 J
Noise filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Number of cables	1
Color	Beige
Height	16.8 cm
Width	11.9 cm
Depth	36.1 cm
Product weight	11.06 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No
Provided equipment	Basic UPS signalling RS-232 cable; CD with software; User manual
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Product certification	C-Tick; CE; GOST; VDE
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	40 dBA
Heat dissipation	25 Btu/h
Operating altitude	0…10000 ft
