描述

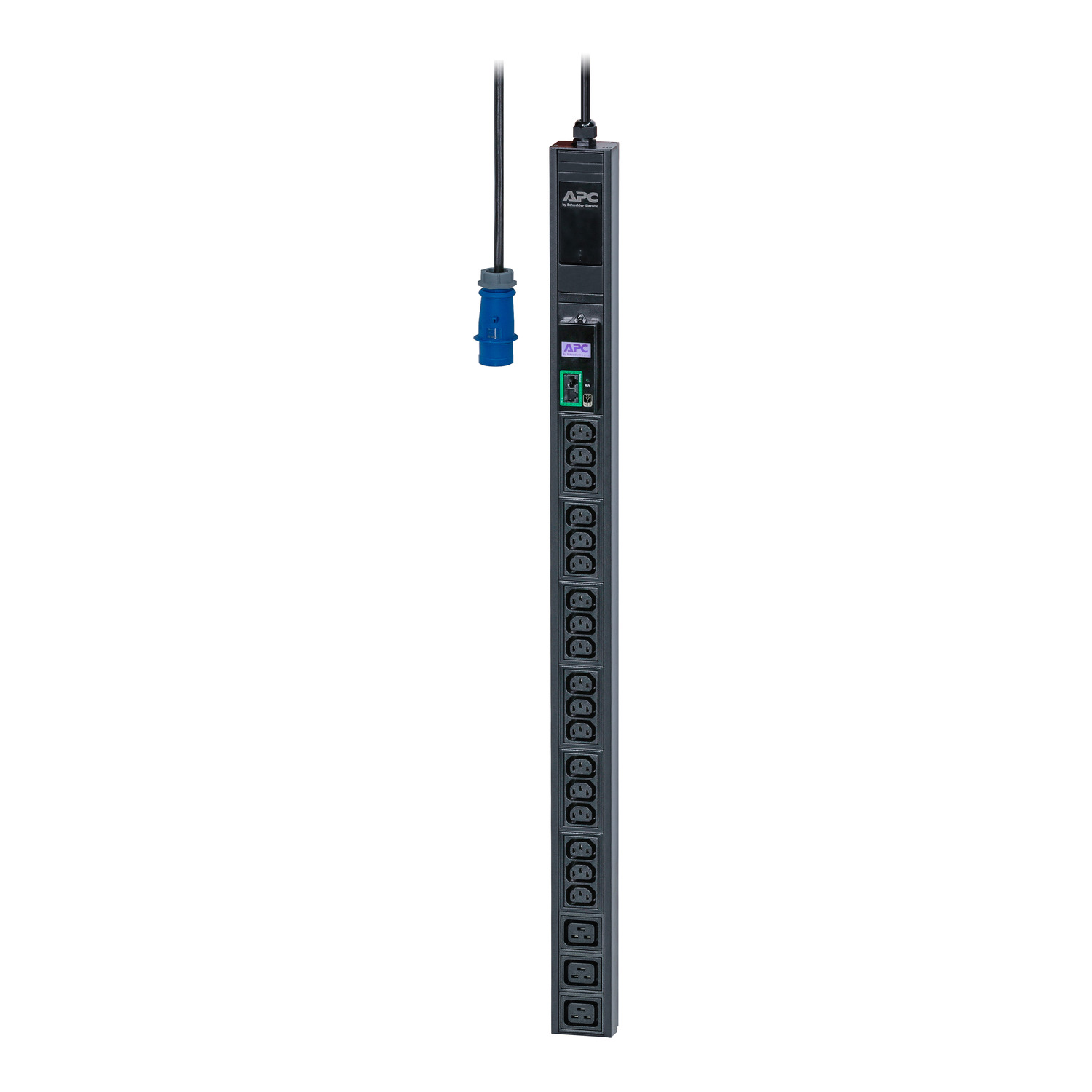

EPDU1116M

Easy Rack PDU, Metered, 0U, 1 Phase

EPDU1116M 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

APC Easy Metered Rack PDU EPDU1116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1116M has IEC 639 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.

規格

主要規格

Product or component type	PDU
Main Input Voltage	200 V; 208 V; 230 V
Input current limits	16 A
Network frequency	50/60 Hz
Main Output Voltage	230 V
Input Connection Type	IEC 60309 16 A 2P + E
Number of power socket outlets	18 IEC 60320 C13 ; 3 IEC 60320 C19
Load capacity	3680 VA
Max current draw	16 A
PDU type	Metered
Number of rack unit	0U
Number of cables	1
Cable length	2.99 m
Provided equipment	Installation guide; User manual; Vertical mounting brackets
