描述
BE650G2-UK

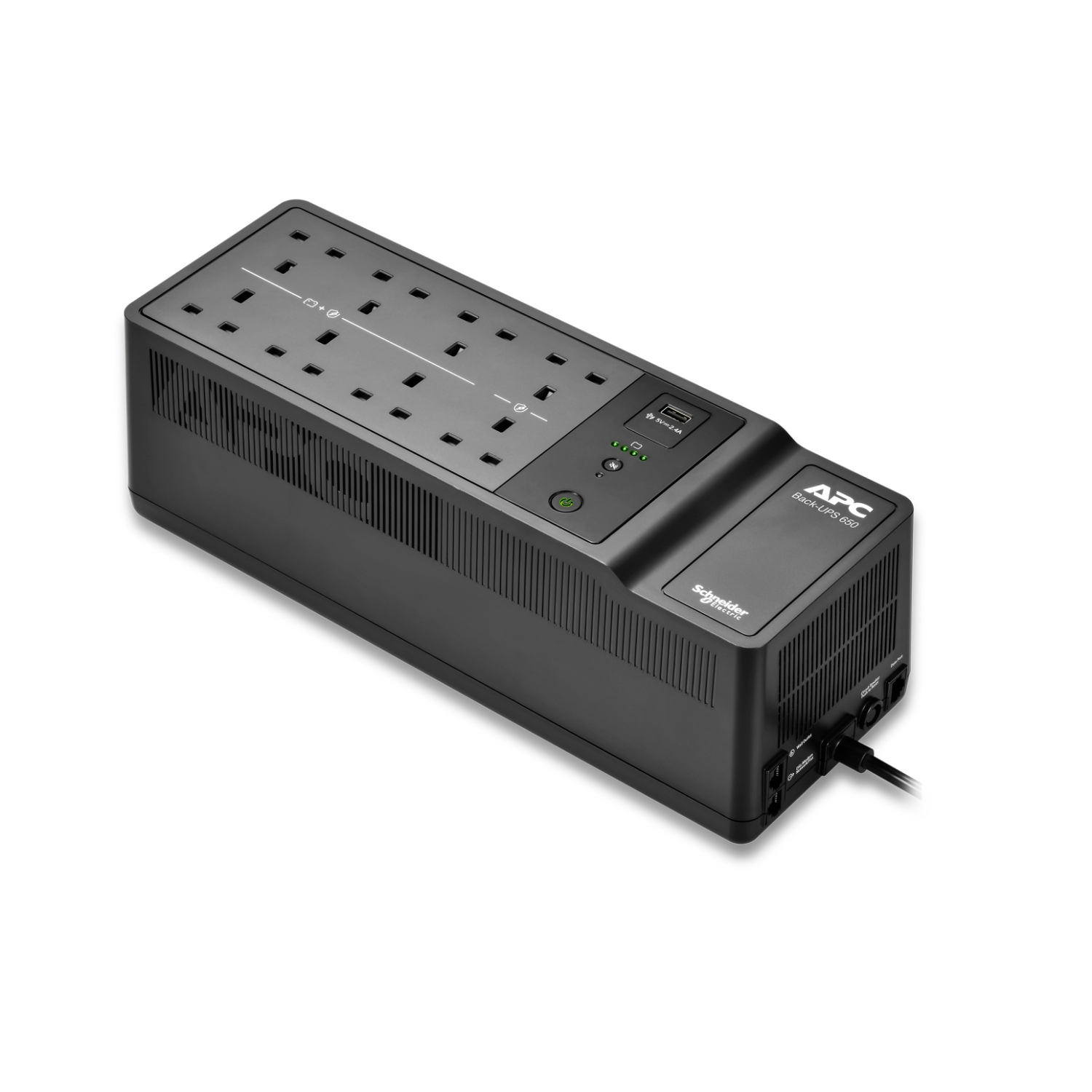

Back-UPS, 650VA/400W Floor/Wall Mount, 230V, 8x British BS1363A outlets
BE650G2-UK 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 650VA floor/wall mount UPS has 8 total outlets, 6 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 310 Joules. It has one USB port for smart charging of personal devices. The BE650G2-UK is designed to maximize runtime for devices such as multiple PCs and television equipment that consume high amounts of power. This UPS has a 2-year warranty on unit and battery. 3-year warranty, 150,000 Euros lifetime connected equipment protection policy, and free technical support exclusive for European community countries only. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | BS1363A British |
| Maximum input current | 6 A |
| Switching current capacity | 10 A |
| Efficiency at full load | 180…266 V |
| Input frequency | 47…63 Hz |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V |
| Rated power in W | 400 W |
| Rated power in VA | 650 VA |
| Output connection | 6 BS 1363; 2 BS 1363 surge |
| Type of USB power supply | USB type A |
| Maximum configurable power in VA | 650 VA |
| Maximum configurable power in W | 400 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Efficiency | 80 % (full load) |
| Output frequency | 47…63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised |
| Replacement battery | APCRBC110 |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | LED Status display with on line : on battery |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Surge energy rating | 310 J |
| Cable length | 1.8 m |
| Color | Black |
| Height | 120 mm |
| Width | 130 mm |
| Depth | 365 mm |
| Product weight | 4 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Wall mount |
| Provided equipment | User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; EAC |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…4572 m |
| Relative humidity | 0…90 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Operating altitude | 0…3000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 16 h |
| RBC quantity | 1 |
| Battery life | 2…5 year(s) |
| Battery charging power | 7 W rated |
