描述

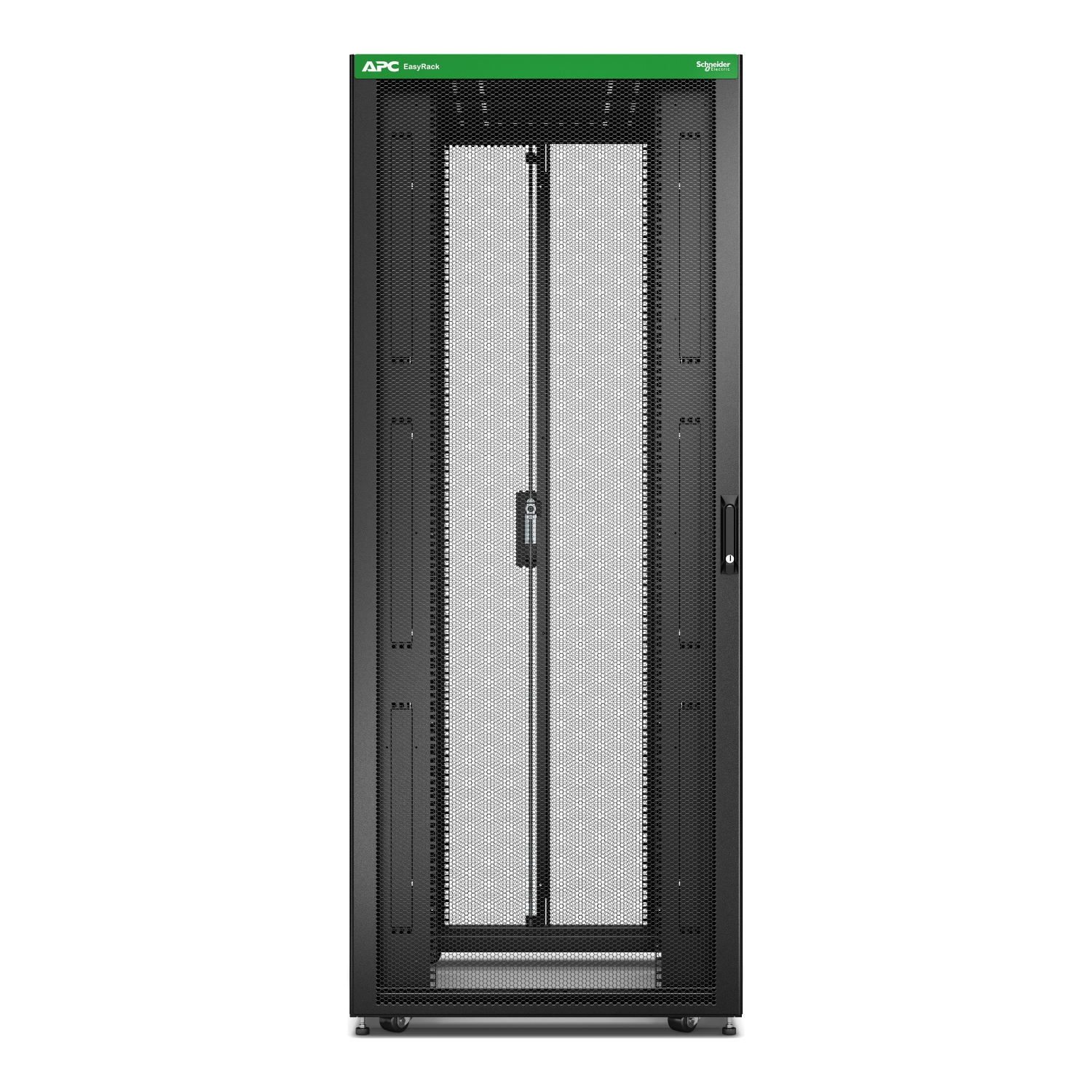

ER8220
Easy Rack, 42U, Black, With Roof
ER8220 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Easy Rack ER8220 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in datacenter & networking applications. This rack comes in 42U Height & 1200mm Depth, with Roof, keys, levelling feet, casters, bottom, mounting hardware, PDU mounting brackets and without side panels. ER8220 is perfect for converged & hyperconverged IT with its 800mm width, ventilated doors with 81% perforation and load ratings – static 1200kg & dynamic 600kg. This rack model design provides enough rack mounting space for even the deepest devices and vertical mounting accessories. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. Easy Rack is designed with multi functional roof for managing cables & proper airflow and have rear accesory brackets for toolless installations. This has integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. This is Wide, Deep and Tall Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Rack width | 19" |
| Permanent permissible load | 1199.8 kg static; 599.6 kg dynamic |
| Provided equipment | Baying hardware; Key(s); Doors; Leveling feet; Mounting hardware; Pre-installed casters |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 241.6 mm |
| Maximum mounting depth | 1041.4 mm |
| Colour | Black |
| Marking | 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail |
| Height | 1911 mm |
| Width | 800 mm |
| Depth | 1200 mm |
| Net weight | 107 kg |
