描述

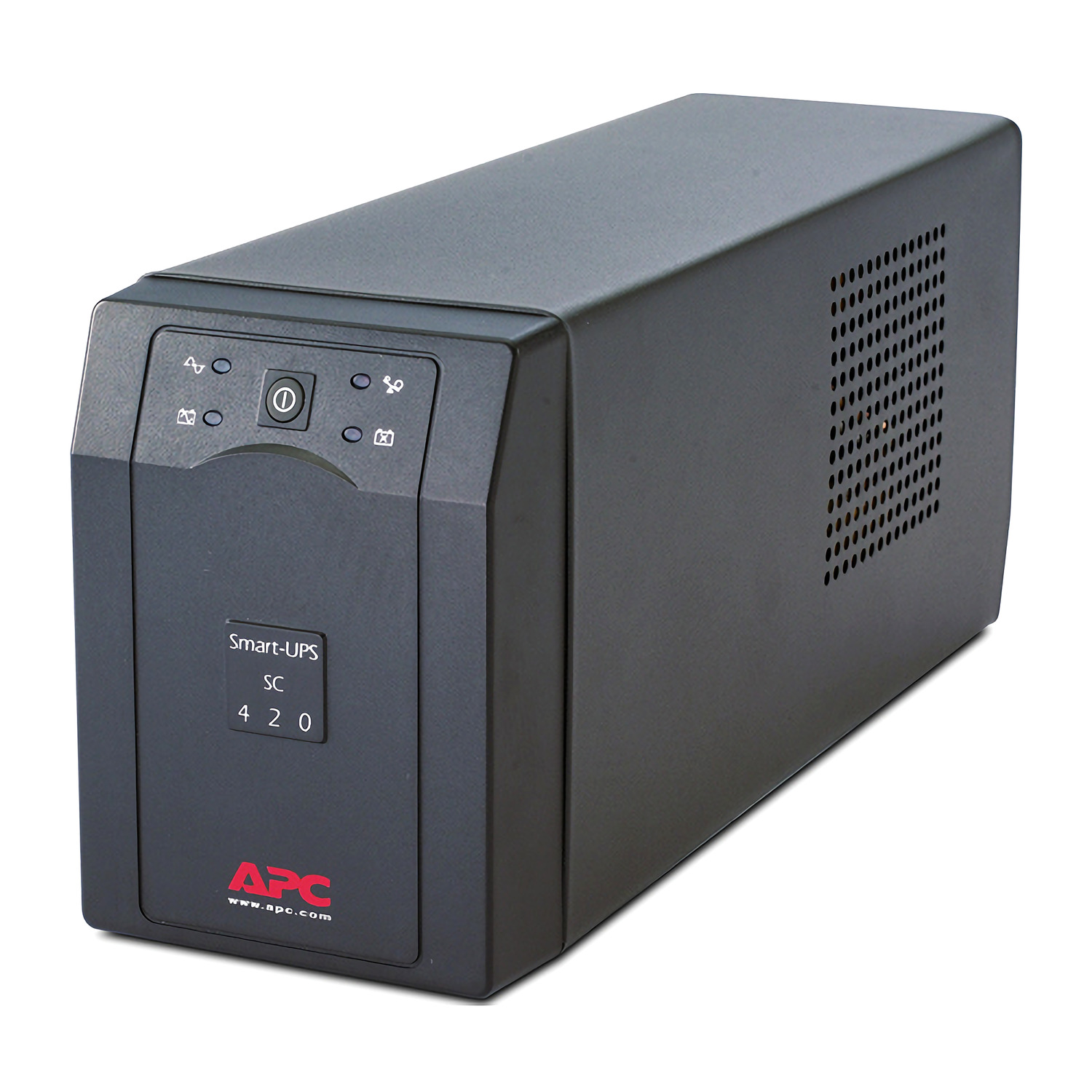

SC420I
Smart-UPS SC 420VA 230V
SC420I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 420VA/260W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The tower mount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 1x IEC 320 C13 (surge protection), and 3x IEC 320 C13 (battery backup) outlets, and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 368mm (depth) x 168mm (height) x 119mm (width) and weighs 9.09kg. Ideal for networking equipment and POS devices. It conforms to CE, EAC, GOST, NOM, VCCI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
規格
主要規格
| Main input voltage | 230 V AC |
|---|---|
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 195…265 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 260 W |
| Rated power in VA | 420 VA |
| Output connection | 3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 420 VA |
| Maximum configurable power in W | 260 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | RBC2 |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Free slot | 0 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port |
| Data line protection | RJ45 modem/fax/DSL/10-100 base-T protection |
| Surge energy rating | 320 J |
| Noise filtering | Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Color | Grey |
| Height | 168 mm |
| Width | 119 mm |
| Depth | 368 mm |
| Product weight | 9.09 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Mounting mode | Tower |
| Provided equipment | User manual; Smart UPS signalling RS-232 cable; CD with software |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Entry level |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; EAC; GOST; NOM; VDE; VCCI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 50 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 28 W rated |
