SC450RMI1U

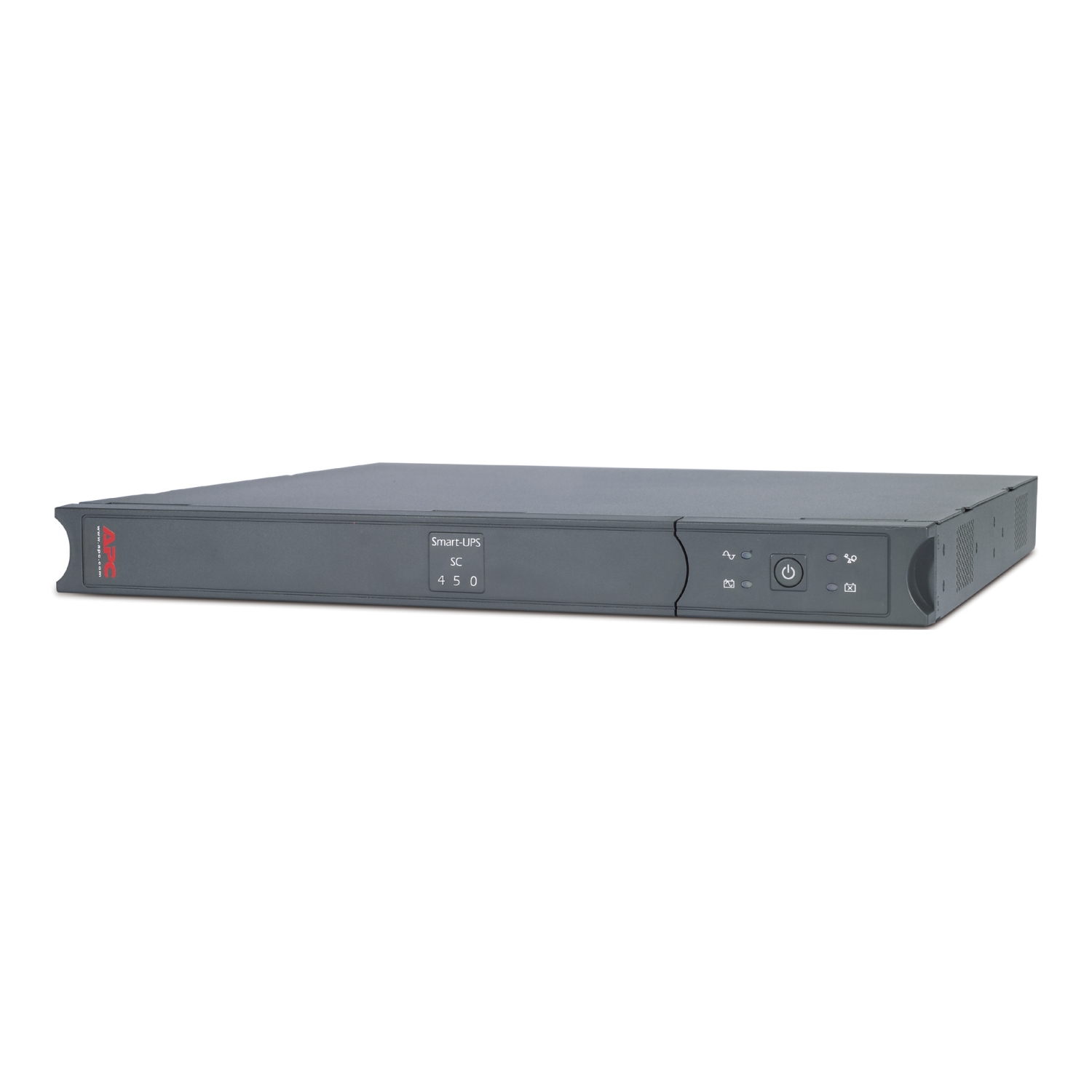

Smart-UPS SC 450VA 230V – 1U Rackmount/Tower
SC450RMI1U 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 151…302 V adjustable; 195…265 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 280 W |
| Rated power in VA | 450 VA |
| Output connection | 4 IEC 60320 C13; 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 450 VA |
| Maximum configurable power in W | 280 W |
| Transfer time | 4 ms typical : 8 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | RBC18 |
補充規格
| Battery capacity | 9.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Emergency power off | Optional |
| Free slot | 0 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port |
| Data line protection | RJ45 10/100 Base-T Ethernet protection |
| Data line protection | RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual line) |
| Surge energy rating | 320 J |
| Noise filtering | Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 1U |
| Color | Grey |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 383 mm |
| Product weight | 10.18 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Mounting mode | Rack-mounted |
| Provided equipment | User manual; Rack mounting brackets; Smart UPS signalling RS-232 cable; CD with software |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Entry level |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; EAC; GOST; TISI; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 38 dBA |
| Heat dissipation | 38 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 5 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 22 W rated |
