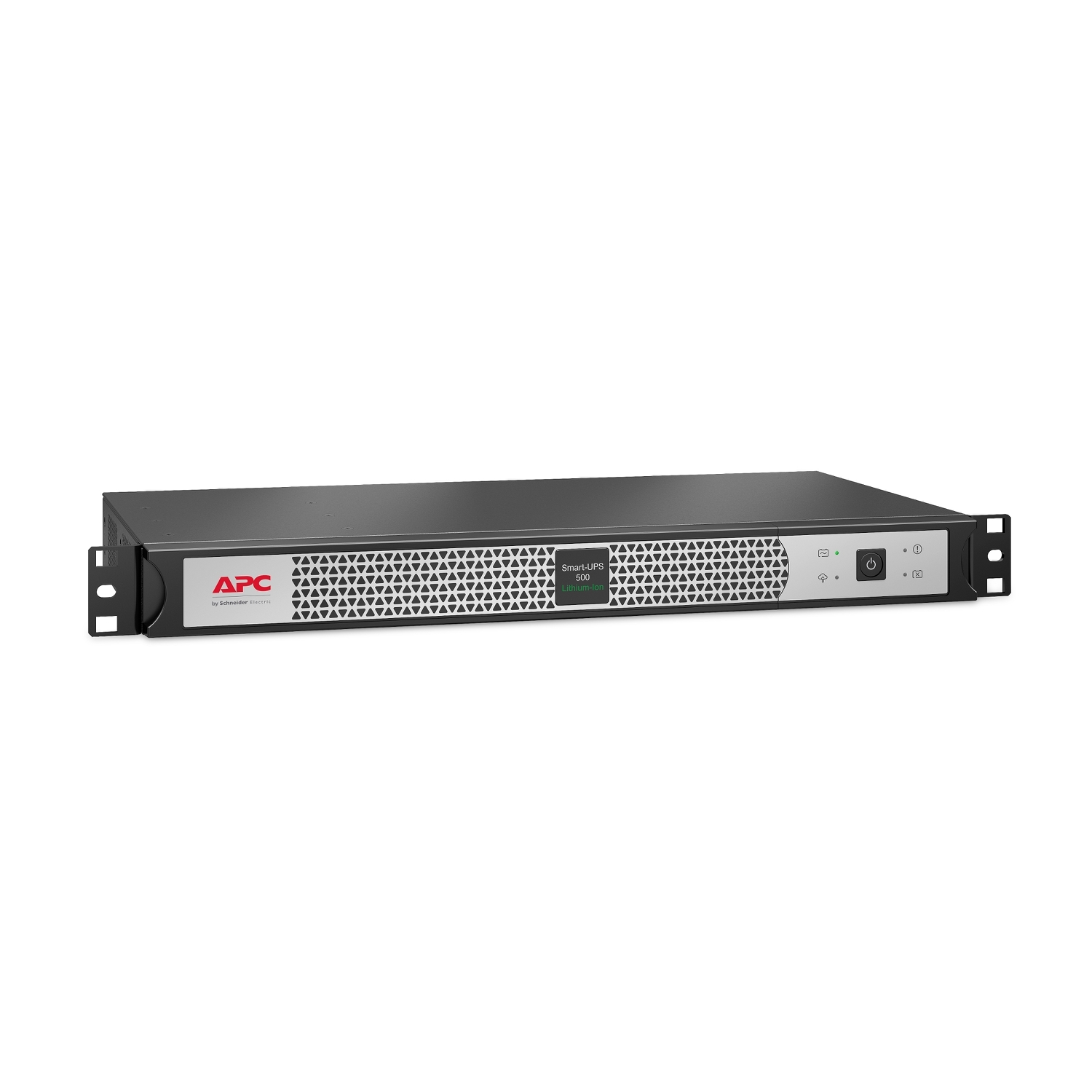

SCL500RMI1UC
Smart-UPS, Line Interactive, 500VA, Lithium-ion
SCL500RMI1UC 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Input protection | Circuit breaker |
| Efficiency at full load | 208…253 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 400 W |
| Rated power in VA | 500 VA |
| Output connection | 4 IEC 60320 C13 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 500 VA |
| Maximum configurable power in W | 400 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
補充規格
| Battery type | Li-Ion (Lithium-Ion) internal included |
|---|---|
| Control panel | LED status display with on line : on battery : replace battery and building wiring fault |
| Free slot | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Software compatibility | SmartConnect; IT Expert; PowerChute Serial Shutdown |
| UPS connectivity | Serial port; USB port; SmartConnect port |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Surge energy rating | 510 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 1U |
| Color | Black with silver front bezel |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 232 mm |
| Product weight | 4.06 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting mode | Rack-mounted |
| Provided equipment | Installation guide; Rack mounting support rails; USB cable |
| Additional specification | Cloud-enabled monitoring |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; EAC; RCM; UK PSTI |
|---|---|
| Equipment protection policy | Lifetime : $150000 |
| Standard | EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…7620 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 45 dBA |
| Heat dissipation | 41.61 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Battery graph comment | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extendable runtime | 0 |
| Battery design life | 8…10 year(s) |
| Battery charging power | 10 W rated |
