描述
SMC2000I

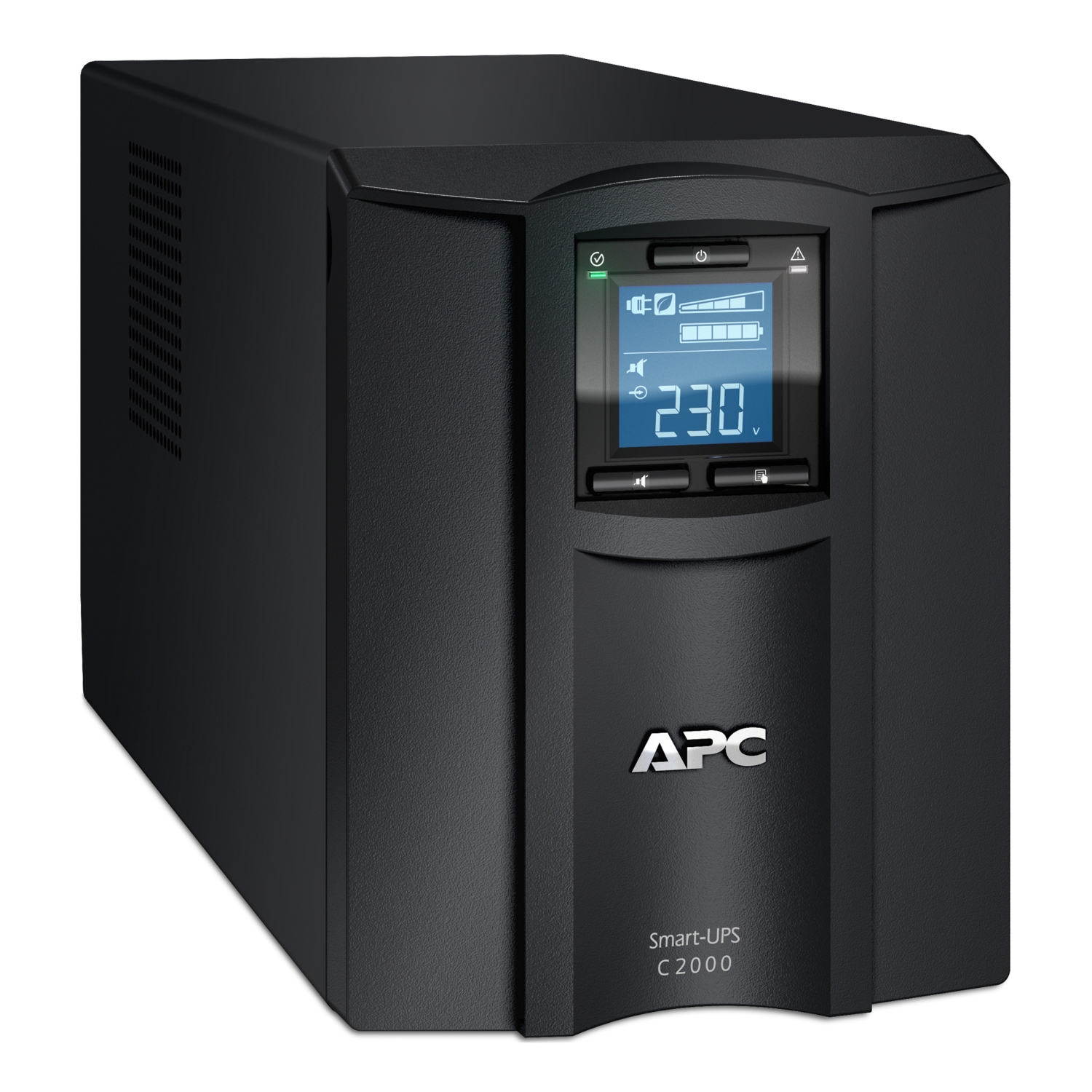

Smart-UPS C, Line Interactive, 2000VA, Tower
SMC2000I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 2000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The Smart-UPS C has an intuitive graphic LCD interface. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. This line interactive UPS operates in green mode for high operating efficiency. The SMC has built-in lead-acid battery and is covered by a 2-year UPS warranty. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | IEC 60320 C20 |
| Efficiency at full load | 170…300 V adjustable; 180…287 V |
| Input frequency | 47…63 Hz |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 1300 W |
| Rated power in VA | 2000 VA |
| Output connection | 6 IEC 60320 C13; 1 IEC 60320 C19 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1300 W |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50 Hz sync to mains |
| Replacement battery | APCRBC148 |
補充規格
| Battery type | Lead-acid internal included |
|---|---|
| Control panel | Multifunction LCD status and control console |
| Free slot | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port; USB port |
| Surge energy rating | 300 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Color | Black |
| Height | 216 mm |
| Width | 170 mm |
| Depth | 440 mm |
| Product weight | 27.5 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Tower |
| Provided equipment | CD with software; Documentation CD; USB cable |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Entry level |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; EAC; GOST; SABS; VDE; UK PSTI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 166 W rated |
