描述

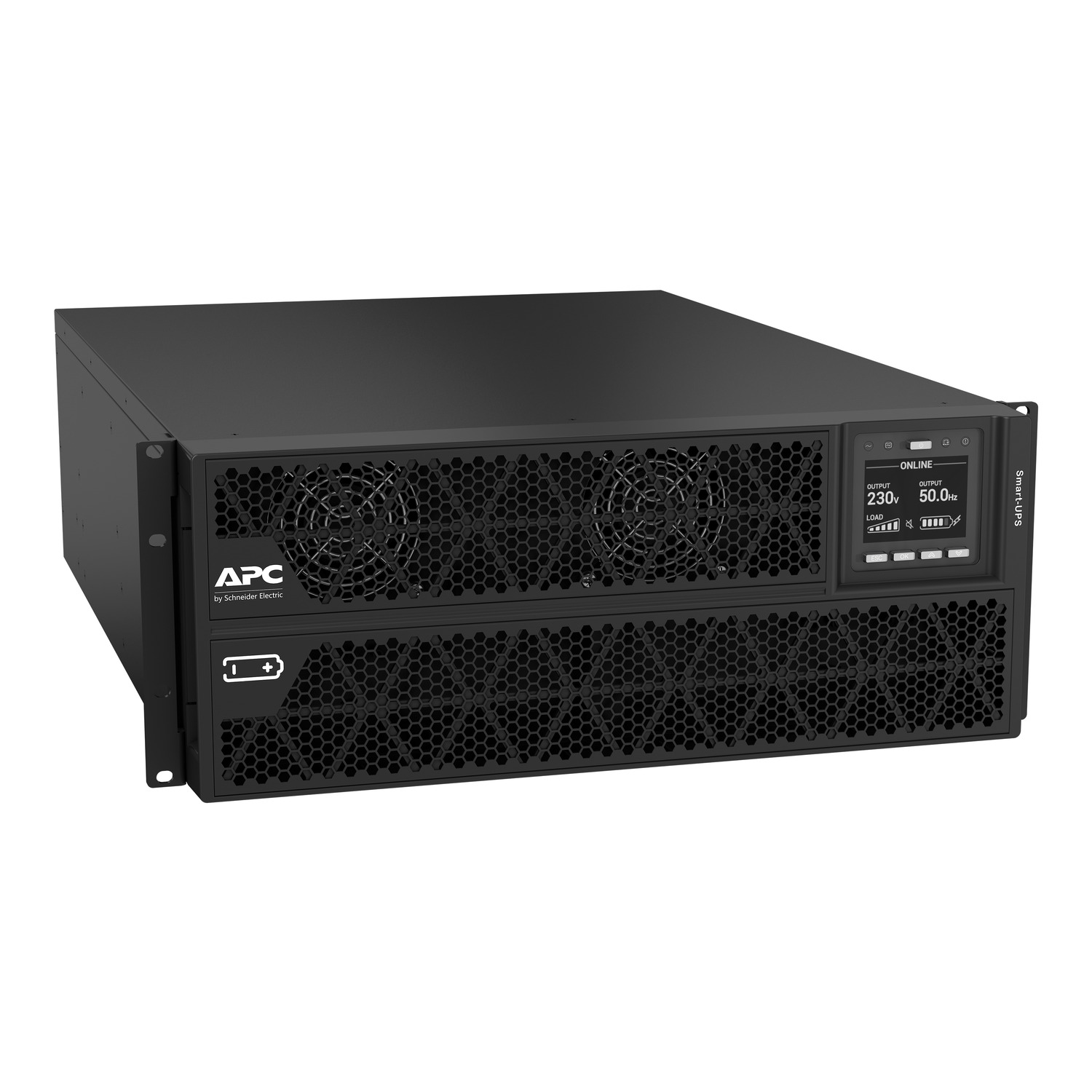

SRTG6KXLI
Smart-UPS On-Line, 6kVA, Rack/Tower, 230V
SRTG6KXLI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
It is a high-capacity rack-mounted UPS with a power rating of 6000VA and 6000W. It features a 4U form factor and is designed for critical IT and data center applications. The UPS includes advanced battery management and monitoring capabilities, providing real-time insights into battery health and performance. It operates at a nominal voltage of 230V and includes multiple output connections, including IEC 60320 C13 and C19 outlets.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Efficiency at full load | 160…285 V full load; 100…285 V half load |
| Input connection | 1 hard wire 3-wire (1P + N + E) |
| Input frequency | 40…70 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| Output connection | 2 IEC 60320; 1 IEC 60320 |
| Output connection | Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 6000 VA |
| Maximum configurable power in W | 6000 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 93.5 % |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Replacement battery | APCRBC170 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Emergency power off | Yes |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port; Pre-installed network management card 3 |
| Surge energy rating | 600 J |
| Number of rack unit | 4U |
| Color | Black (RAL 9005) |
| Height | 175 mm |
| Width | 440 mm |
| Depth | 620 mm |
| Product weight | 55.9 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | 1 x USB cable; 1 x RJ45 cable; 1 x rack mounting brackets; 1 x stabilization/wall mounting feet; 1 x installation manual; 1 x C13-C14 power cord |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; UKCA; TISI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15000 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 1330.74 Btu/h |
| Operating altitude | 0…3000 m |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | +/- 96 V |
| Extendable runtime | 1 |
| Included battery module | 2 |
| Empty battery slot | 0 |
| Typical recharge time | 4 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 239 W rated |
