描述

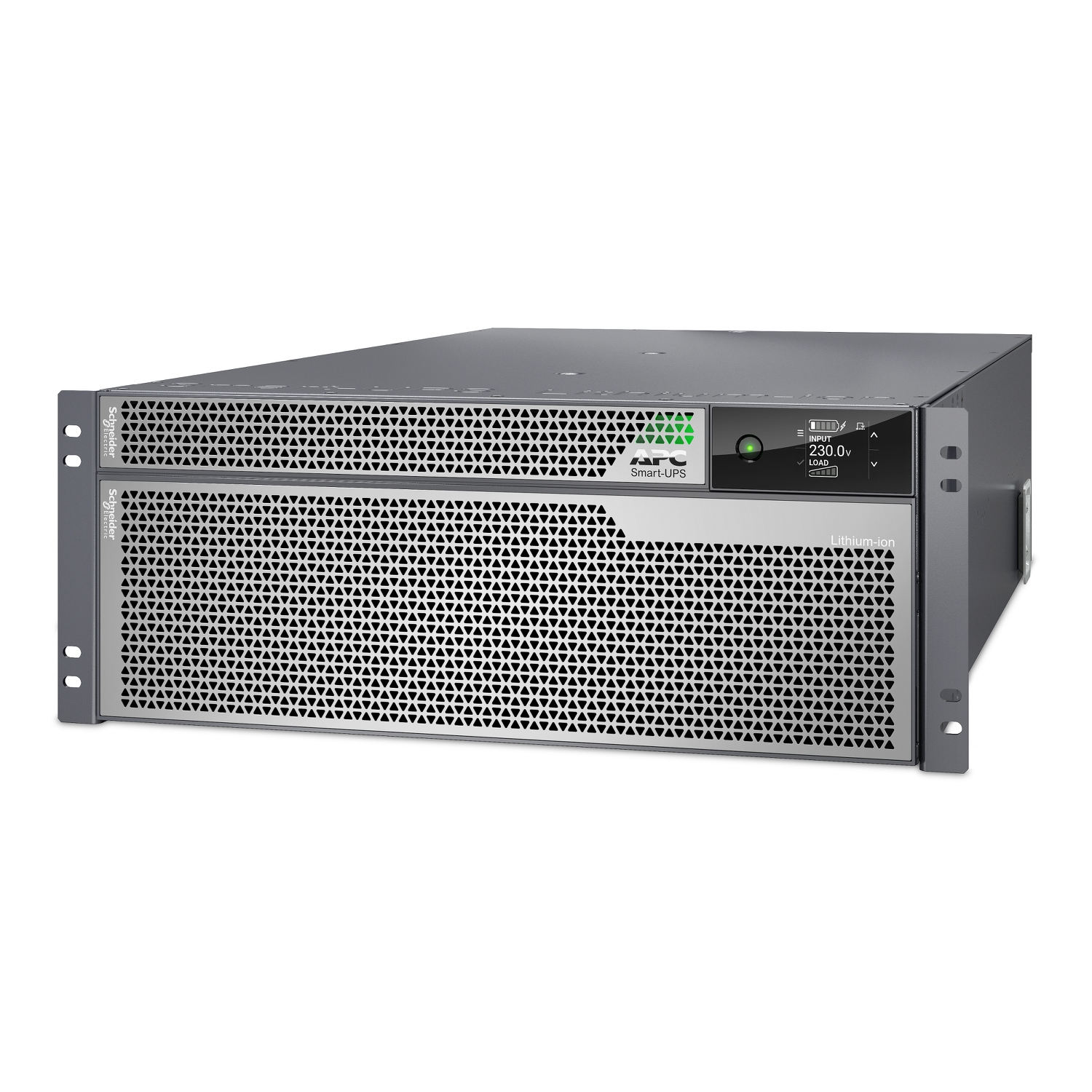

SRTL8KRM4UI
Smart-UPS Ultra On-Line, 8000VA, Lithium-ion, Rack/Tower 4U
SRTL8KRM4UI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
With Smart-UPS™ Ultra you can put up to 8000W of power protection in places never before possible. Make installation effortless with a 8kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
規格
主要規格
| Main input voltage | 220 V AC 1 phase |
|---|---|
| Other input voltage | 220…240 V |
| Input connection | Hard Wire 3-wire 46 A |
| Input connection | 1 hard wire 3-wire (1P + N + E) |
| Input frequency | 40…70 Hz auto-sensing |
| Output voltage | 220 V AC 1 phase |
| Other output voltage | 220/230/240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 8000 VA |
| Output connection | 6 IEC 60320 C13; 6 IEC 60320 C19 |
| Output connection | Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 8000 VA |
| Maximum configurable power in W | 8000 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Full load runtime | 00:07:00 8000 W |
| Half load runtime | 00:15:00 4000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
補充規格
| Battery type | Li-Ion (Lithium-Ion) internal included |
|---|---|
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slot | 1 |
| Preinstalled device | Network management card with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 1410 J |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Color | Silver grey |
| Height | 175 mm |
| Width | 432 mm |
| Depth | 832 mm |
| Product weight | 55 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit; Tower-mounted with kit |
| USB compatible | Yes |
| Mounting position | Horizontal; Vertical |
| Mounting mode | Rack/tower convertible with included kit |
| Provided equipment | Temperature probe; USB cable; Rack mounting hardware; Strain relief; Stabilization feet |
| Number of power module free slots | 0 |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS Ultra |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | VDE |
|---|---|
| Marking | CE Mark; UKCA |
| Standard | EN/IEC 62040-1; IEC 62040-2; EN/IEC 62040-2 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dB |
| Heat dissipation | 1900 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Battery voltage | 180 V |
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 1.5 h |
| RBC quantity | 2 |
| Battery life | 5…10 year(s) |
| Battery charging power | 1200 W rated |
