SRV1KI-H

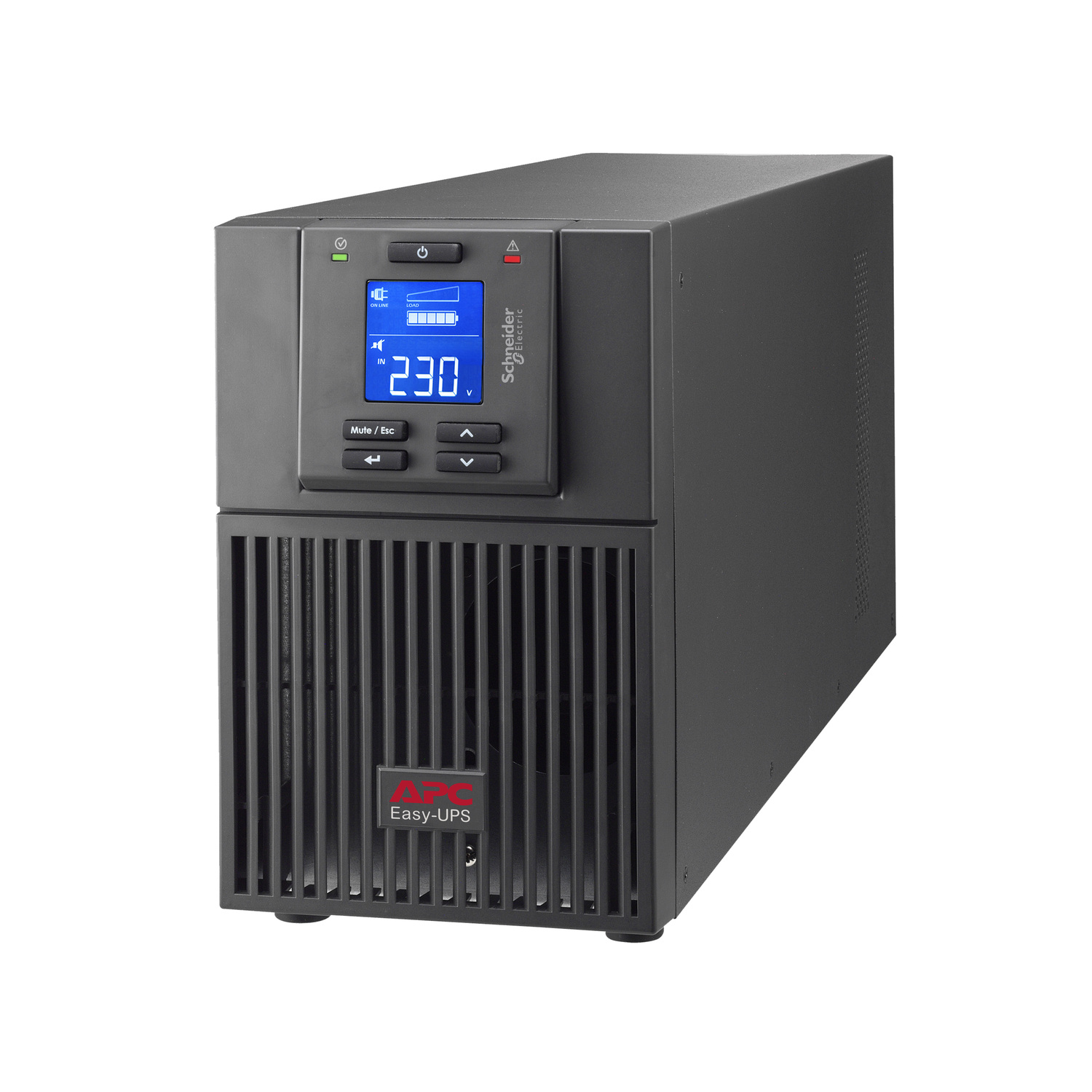

Easy UPS On-Line, 1000VA/800W, Tower, 230V
SRV1KI-H 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 110…285 V half load; 160…280 V full load |
| Input frequency | 40…70 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |
| Output connection | 4 IEC 60320 C13 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 88 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBCV203 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 600 J |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Color | Black (RAL 7010) |
| Height | 223 mm |
| Width | 145 mm |
| Depth | 288 mm |
| Product weight | 9.6 kg |
| Mounting location | Front |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Mounting mode | Tower |
| Max runtime | 4 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018; UL 1778 |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15000 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 372 Btu/h |
| Operating altitude | 0…3000 m |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 24 V |
| Extendable runtime | 0 |
| Included battery module | 1 |
| Empty battery slot | 0 |
| Typical recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Battery charging power | 30 W rated |
| Battery power in VAh | 152 VAh runtime |
