描述

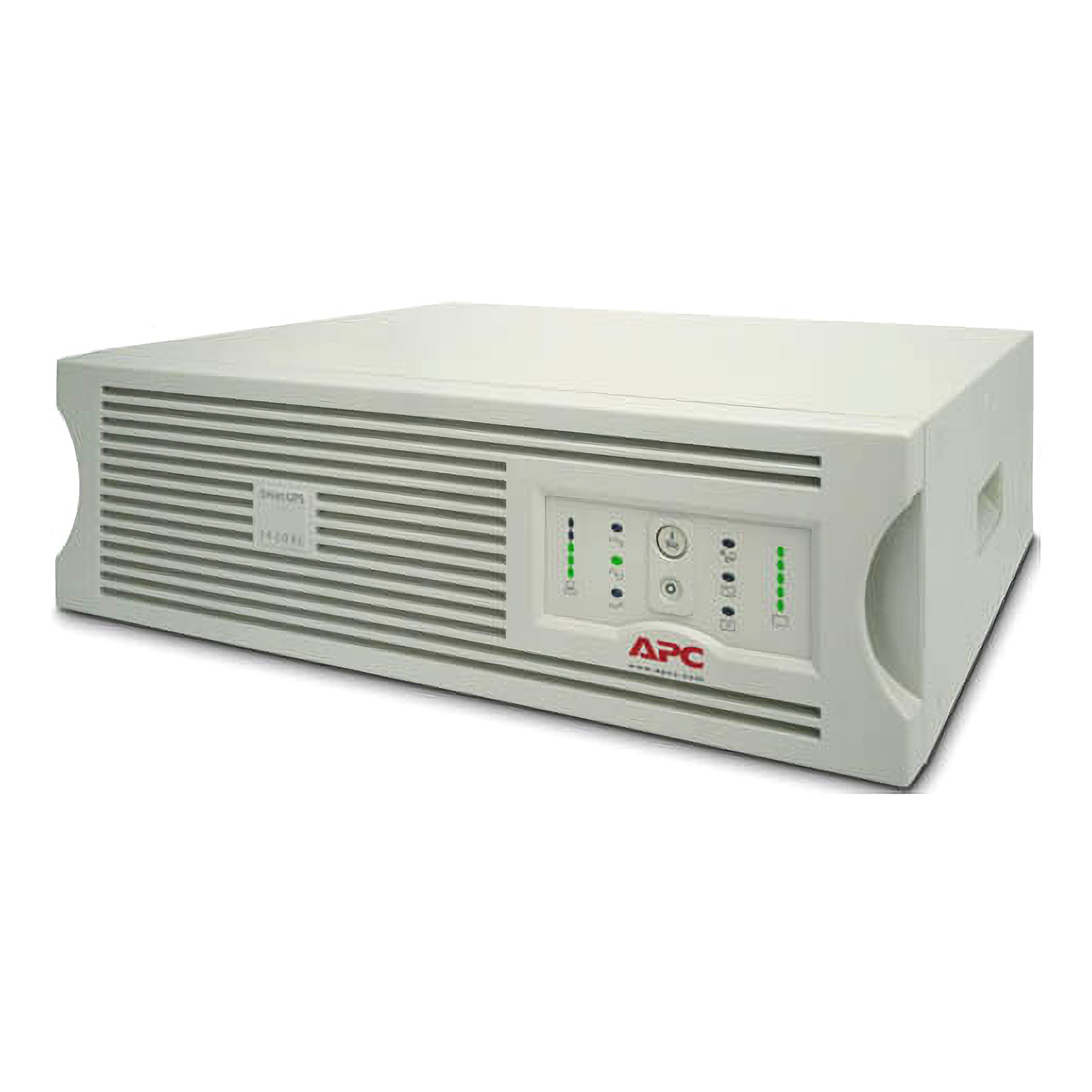

SU1400RMXLI3U
Smart-UPS XL 1400VA RM 3U 230V
SU1400RMXLI3U 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 168…302 V adjustable; 176…282 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V |
| Rated power in W | 1050 W |
| Rated power in VA | 1400 VA |
| Output connection | 8 IEC 60320 C13; 3 IEC Jumpers |
| Crest factor | Up to 5 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 1400 VA |
| Maximum configurable power in W | 1050 W |
| Maximum output current | 1050 A |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | RBC25 |
補充規格
| Additional information | UPS and XL Battery Pack use different RBC. SU24RMXLBP2U uses RBC26. |
|---|---|
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
| Emergency power off | Optional |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge energy rating | 480 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 3U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Color | Beige |
| Height | 13 cm |
| Width | 43.2 cm |
| Depth | 39.4 cm |
| Product weight | 31.82 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| USB compatible | No |
| Provided equipment | CD with software; Rack mounting support rails; Smart UPS signalling RS-232 cable; User manual |
| Number of power modules | 1050 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…85 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 48 dBA |
| Heat dissipation | 155 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 144 W rated |
