描述

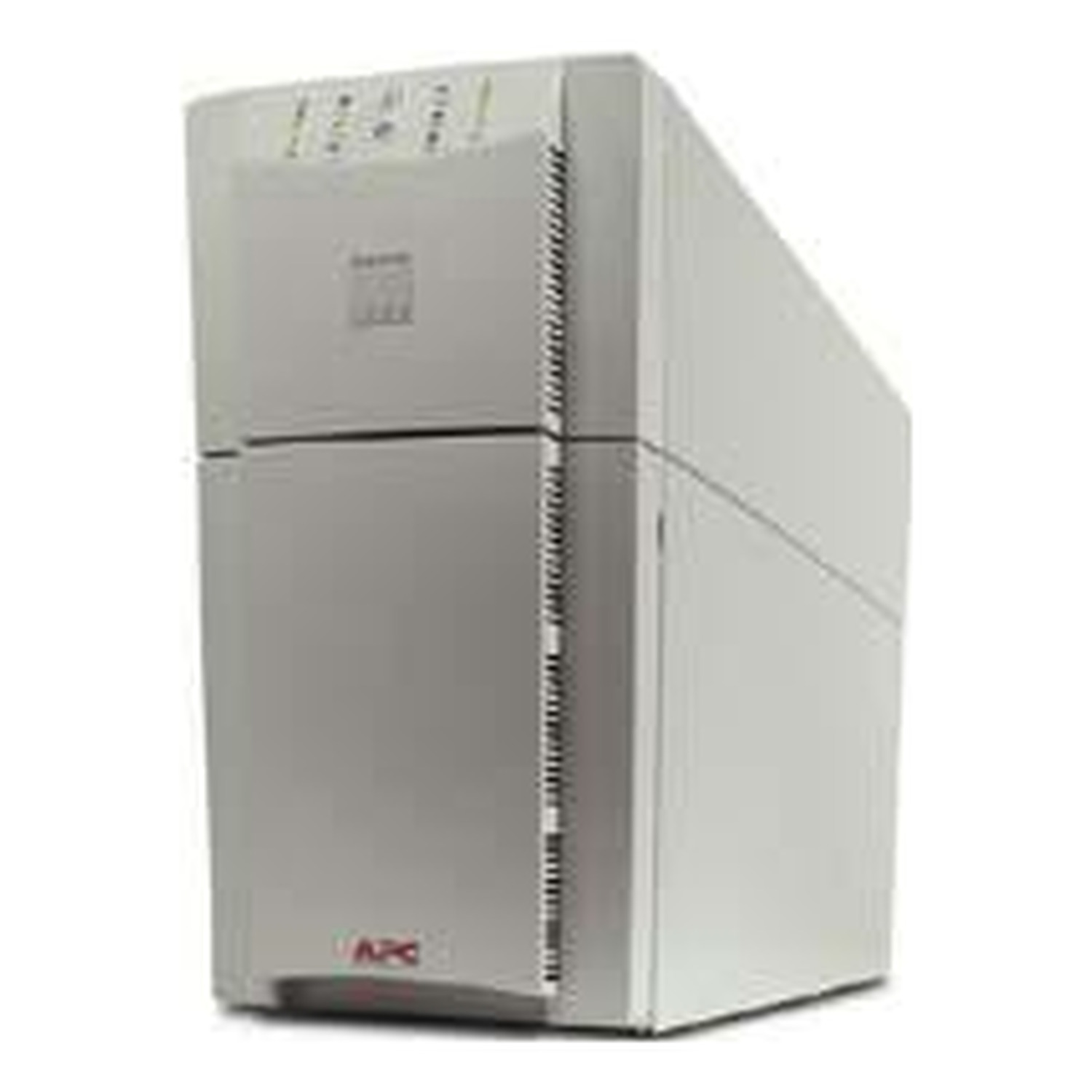

SU5000I

Smart-UPS 5000VA 230V

SU5000I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Efficiency at full load	168…302 V adjustable; 174…286 V
Input connection	1 hard wire 3-wire
Input frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V
Rated power in W	3750 W
Rated power in VA	5000 VA
Output connection	8 IEC 60320 C13; 6 IEC Jumpers; 2 IEC 60320 C19
Crest factor	Up to 5 : 1
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	5000 VA
Maximum configurable power in W	3750 W
Transfer time	2 ms typical
UPS topology	Line interactive
Waveform type	Sine wave
Output frequency	47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains
Replacement battery	RBC12

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Control panel	LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Emergency power off	Optional
Free slot	1
Preinstalled device	Network management card
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating	480 J
Noise filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Number of cables	1
Color	Beige
Height	43.9 cm
Width	22.9 cm
Depth	66.5 cm
Product weight	95.45 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	No
Provided equipment	User manual; Smart UPS signalling RS-232 cable; CD with software
Number of power modules	3750
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Product or component type	Uninterruptible power supply (UPS)

Product certification	C-Tick; CE; GOST; TÜV; VDE
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	53 dBA
Heat dissipation	430 Btu/h
Operating altitude	0…10000 ft
