描述

SU700XLINET

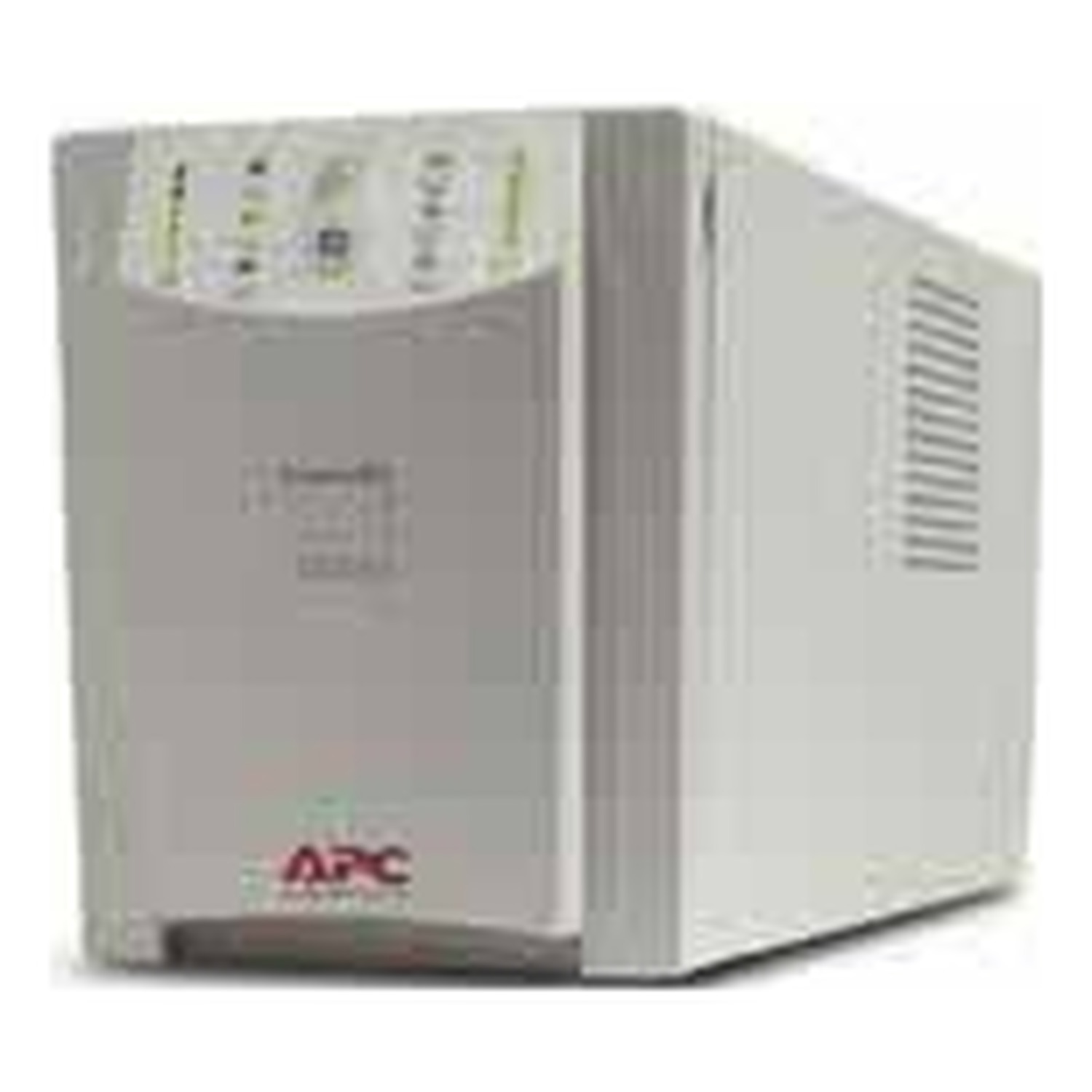

Smart-UPS 700VA XL 230V

SU700XLINET 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Input connection	IEC 60320 C14
Efficiency at full load	168…302 V adjustable; 174…286 V
Input frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V
Rated power in W	450 W
Rated power in VA	700 VA
Output connection	4 IEC 60320 C13; 2 IEC Jumpers
Maximum configurable power in VA	700 VA
Maximum configurable power in W	450 W
Transfer time	2 ms typical
UPS topology	Line interactive
Replacement battery	RBC7

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Control panel	LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Emergency power off	Optional
Free slot	1
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating	320 J
Noise filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Number of cables	1
Color	Beige
Height	21.6 cm
Width	17 cm
Depth	43.9 cm
Product weight	24.09 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	No
Provided equipment	User manual; Smart UPS signalling RS-232 cable; CD with software
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Product or component type	Uninterruptible power supply (UPS)

Product certification	C-Tick; CE; GOST; VDE
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	42 dBA
Heat dissipation	100 Btu/h
Operating altitude	0…10000 ft
