描述

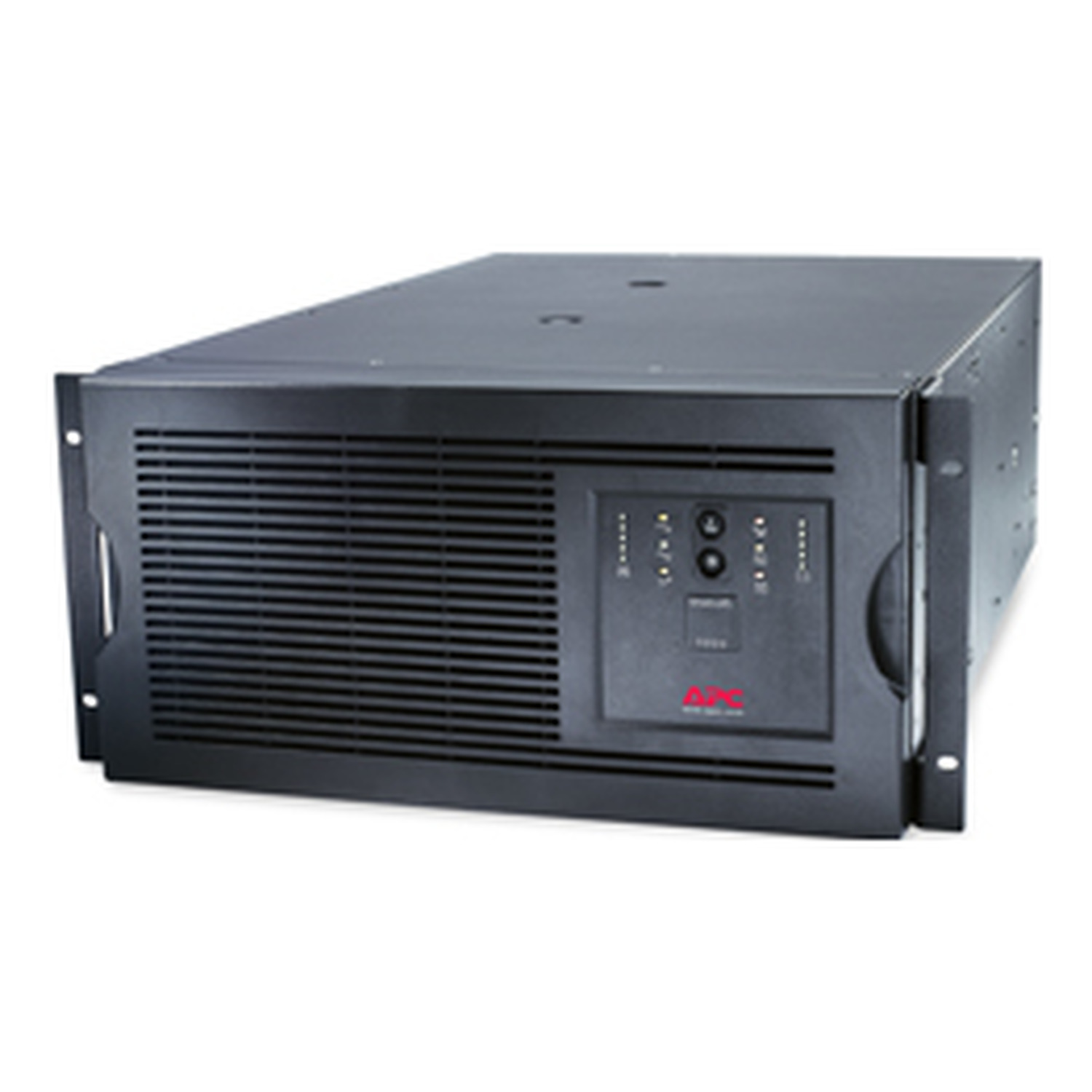

SUA5000RMI5U
Smart-UPS 5000VA 230V Rackmount/Tower
SUA5000RMI5U 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as 8 IEC 320 C13 and 2 IEC 320 C19. The UPS uses lead-acid battery and features a SmartSlot for additional management options.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Efficiency at full load | 151…302 V adjustable; 160…286 V |
| Input connection | 1 hard wire 3-wire |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 4000 W |
| Rated power in VA | 5000 VA |
| Output connection | 8 IEC 60320 C13; 4 IEC Jumpers; 2 IEC 60320 C19 |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 5000 VA |
| Maximum configurable power in W | 4000 W |
| Transfer time | 2 ms typical : 4 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Efficiency | 96 % (full load) |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains |
| Replacement battery | RBC55 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Free slot | 0 |
| Preinstalled device | Network management card |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 480 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 5U |
| Color | Black |
| Height | 222 mm |
| Width | 483 mm |
| Depth | 660 mm |
| Product weight | 97.73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software; Documentation CD; Installation guide; Rack mounting hardware; Rack mounting support rails; Smart UPS signalling RS-232 cable; User manual; Web/SNMP management card |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Marking | GS Mark |
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 53 dBA |
| Heat dissipation | 430 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 2 |
| Battery life | 3…5 year(s) |
| Battery charging power | 542 W rated |
