描述

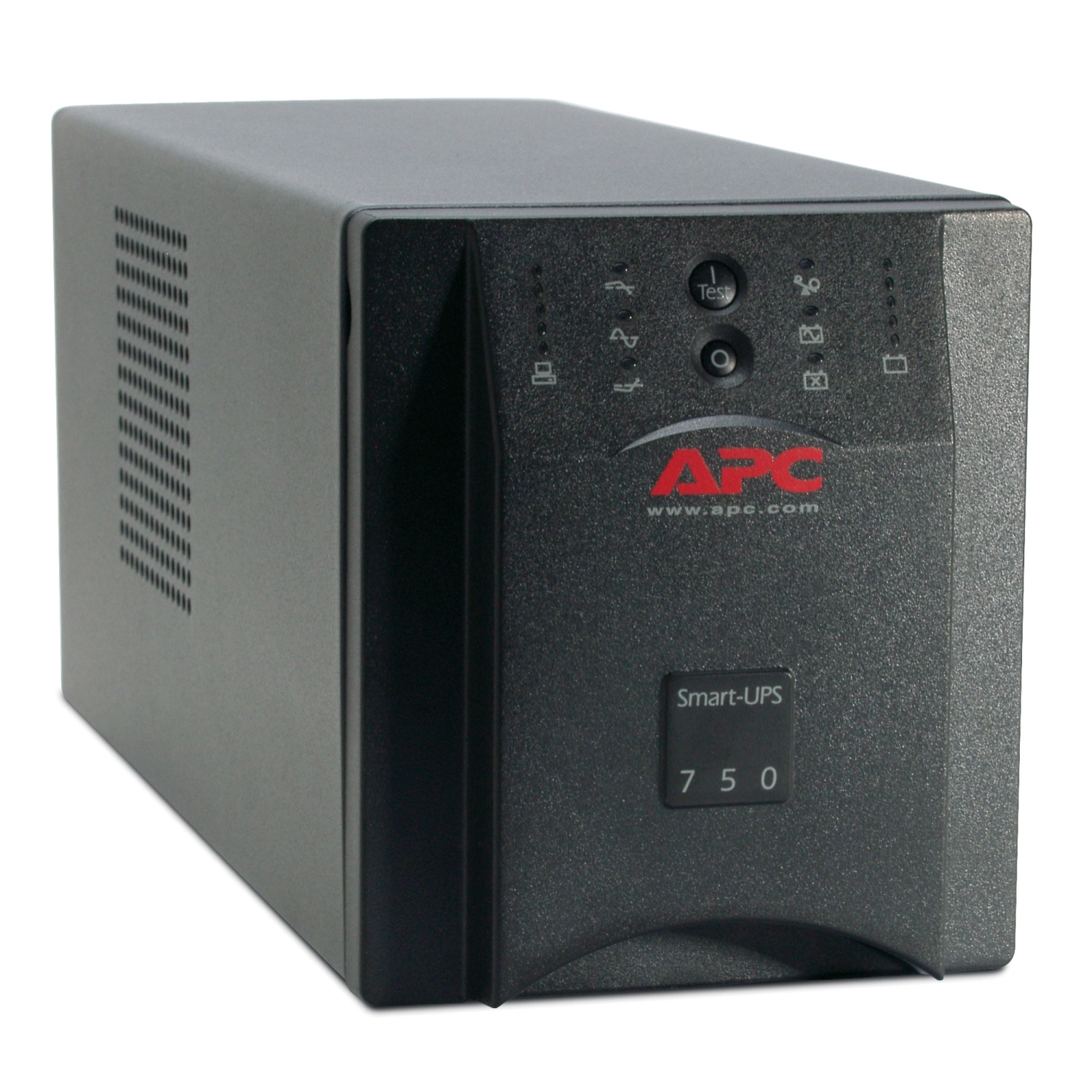

SUA750I
Smart-UPS 750VA USB & Serial 230V
SUA750I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 151…302 V adjustable; 160…286 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 500 W |
| Rated power in VA | 750 VA |
| Output connection | 6 IEC 60320 C13; 2 IEC Jumpers |
| Crest factor | Up to 5 : 1 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 500 W |
| Transfer time | 2 ms typical |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | RBC48 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery capacity | 7.0 Ah |
| Battery type | Lead-acid internal included |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
| Emergency power off | Optional |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 340 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Color | Black |
| Height | 157 mm |
| Width | 137 mm |
| Depth | 361 mm |
| Product weight | 13.18 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Tower |
| Provided equipment | CD with software; Smart UPS signalling RS-232 cable; User manual; USB cable |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 40 dBA |
| Heat dissipation | 90 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 24 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 50 W rated |
