SURT5KSR3UXIX438

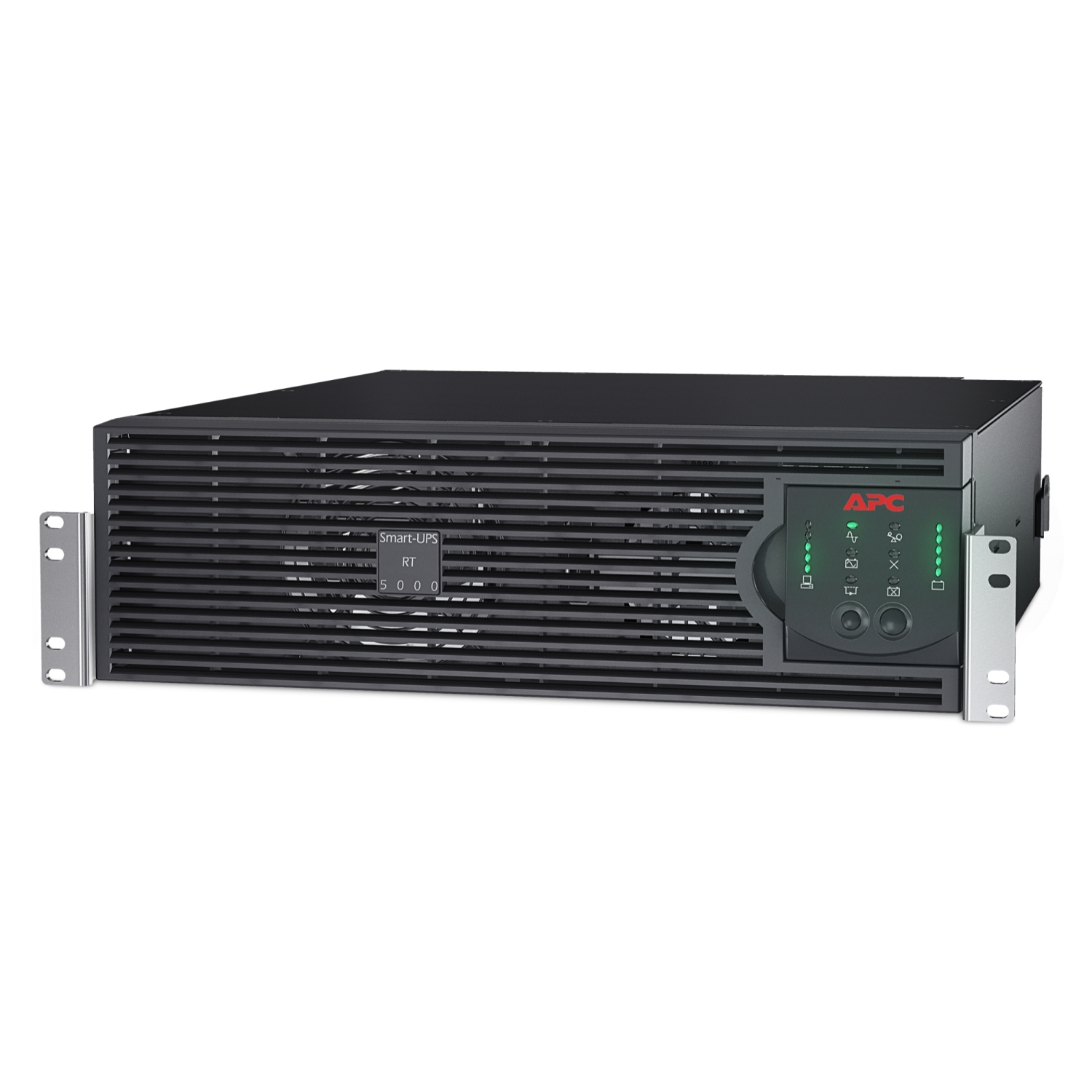

Smart-UPS RT 5000VA, 230V, with AP9610, hardwired I/O
SURT5KSR3UXIX438 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The APC Smart-UPS RT is an online UPS with a power rating of 5000VA and output power capacity of 4000 watts. This model is includes a lead-acid battery and is not rack-mountable. The UPS features double conversion online technology and sine wave output.
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Other input voltage | 208 V; 220 V; 240 V |
| Efficiency at full load | 160…280 V |
| Input connection | 1 hard wire 3-wire |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 4000 W |
| Rated power in VA | 5000 VA |
| Output connection | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 92 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
補充規格
| Free slot | 0 |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Let through voltage rating | 300 V |
| Surge energy rating | 480 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 3U |
| Height | 133 mm |
| Width | 432 mm |
| Depth | 545 mm |
| Product weight | 18.18 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software; Documentation CD; Relay board; Smart UPS signalling RS-232 cable; User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Variant option | Industrial |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | cUL listed; CE; FCC part 15 class A; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 55 dBA |
| Heat dissipation | 1040 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | External battery system |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 2.5 h |
| RBC quantity | 1 |
| Battery charging power | 382 W rated |
