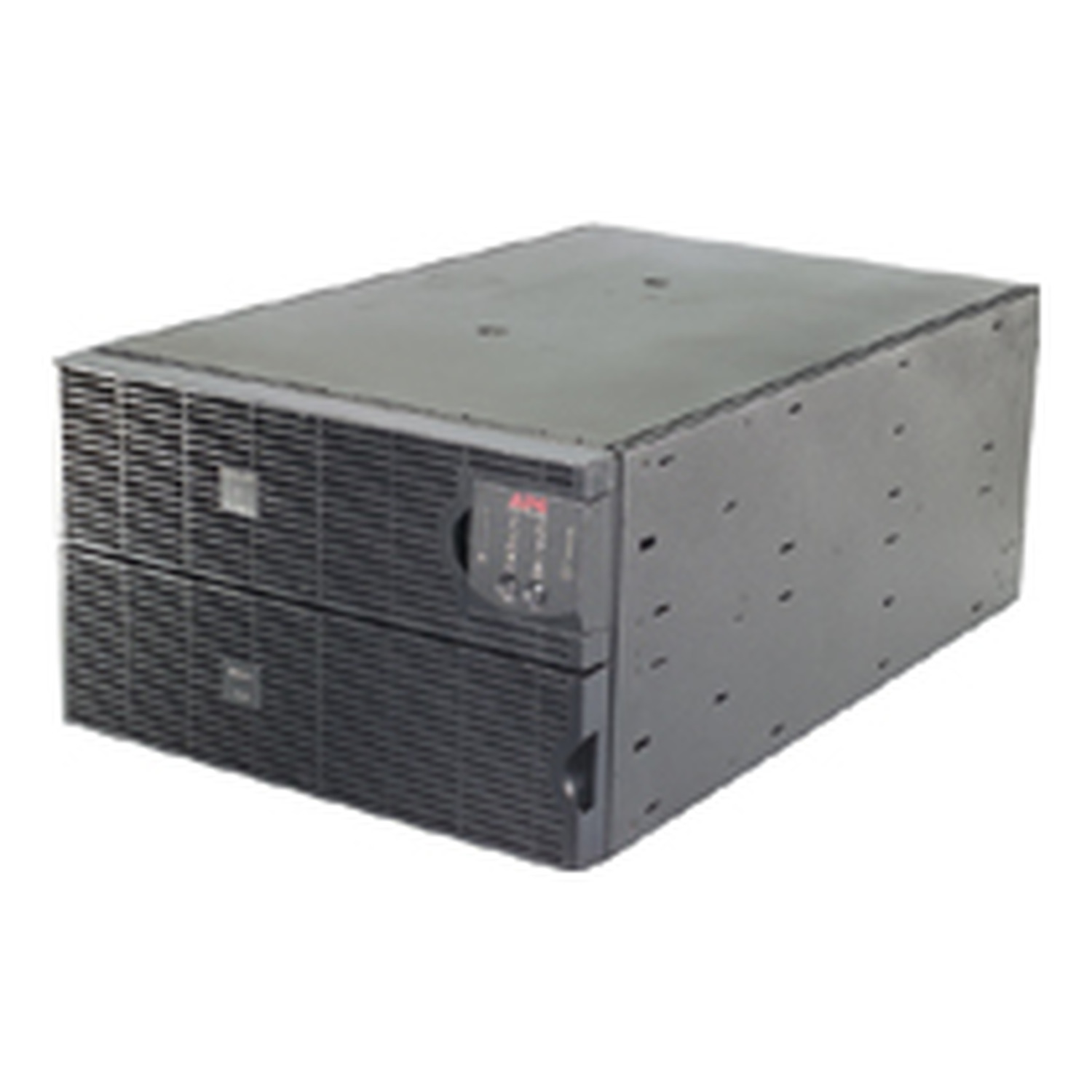

APC SURT7500RMXLI Smart-UPS RT 7500VA, 230V, rackmount, 6U

查詢價錢

Smart-UPS RT 7500VA, 230V, rackmount, 6U。規格以原廠資料為準。

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

貨號: SURT7500RMXLI 分類: APC, APC Smart-UPS

描述

SURT7500RMXLI

Smart-UPS RT 7500VA, 230V, rackmount, 6U

SURT7500RMXLI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Other input voltage	220 V; 240 V
Efficiency at full load	160…280 V
Input connection	1 hard wire 3-wire (1P + N + E); 1 hard wire 5-wire (3P + N + E)
Input frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	230 V
Other output voltage	220 V; 240 V
Rated power in W	6000 W
Rated power in VA	7500 VA
Output connection	4 IEC 60320 C13; 4 IEC Jumpers; 4 IEC 60320 C19
Output connection	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	Less than 3 %
Maximum configurable power in VA	7500 VA
Maximum configurable power in W	6000 W
UPS topology	On-Line
Waveform type	Sine wave
Efficiency	92 % (full load)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Replacement battery	APCRBC140

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Emergency power off	Yes
Free slot	0
Preinstalled device	Network management card with environmental monitoring
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Noise filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	6U
Color	Black
Height	26.3 cm
Width	43.2 cm
Depth	66.3 cm
Product weight	110.91 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
USB compatible	No
Provided equipment	CD with software; Rack mounting support rails; Service manual; Smart UPS signalling RS-232 cable; User manual; Web/SNMP management card
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Product or component type	Uninterruptible power supply (UPS)

Product certification	C-Tick; CE; GOST; VDE
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Acoustic level	55 dBA
Heat dissipation	1535 Btu/h
Operating altitude	0…10000 ft
