描述

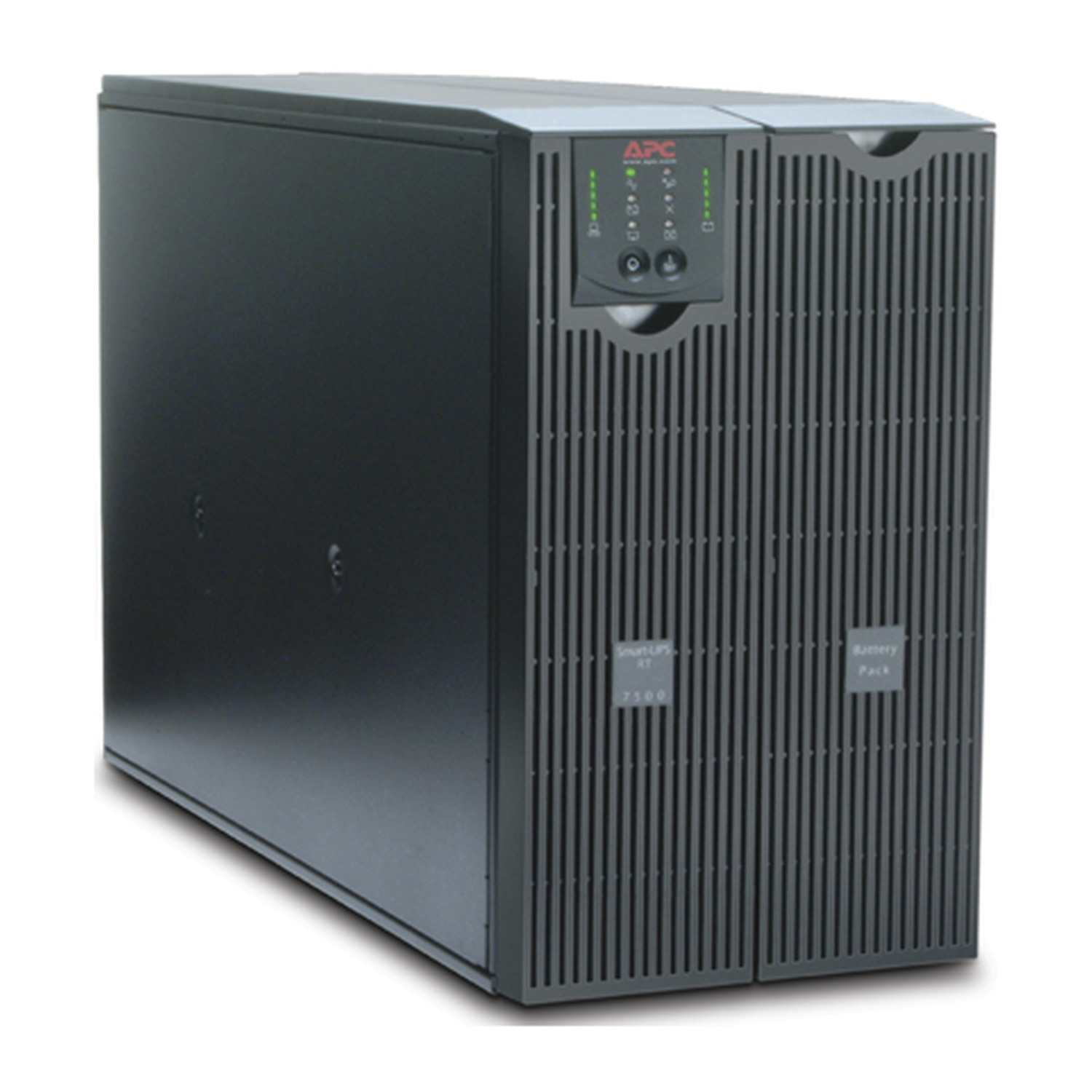

SURT8000XLI
Smart-UPS RT 8000VA, 230/400V
SURT8000XLI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V; 400 V 3 phases |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input harmonic distortion | Less than 7 % for full load |
| Efficiency at full load | 160…280 V |
| Input connection | 1 hard wire 3-wire (1P + N + E); 1 hard wire 5-wire (3P + N + E) |
| Input frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 6400 W |
| Rated power in VA | 8000 VA |
| Output connection | 4 IEC 60320 C13; 6 IEC Jumpers; 4 IEC 60320 C19 |
| Output connection | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 8000 VA |
| Maximum configurable power in W | 6400 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Replacement battery | APCRBC140 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Emergency power off | Yes |
| Free slot | 0 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 1265 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 6U |
| Color | Black |
| Height | 43.2 cm |
| Width | 26.3 cm |
| Depth | 73.6 cm |
| Product weight | 110.91 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software; Service manual; Smart UPS signalling RS-232 cable; User manual; Web/SNMP management card |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 1603 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 4 |
| Empty battery slot | 0 |
| Typical recharge time | 2.2 h |
| RBC quantity | 2 |
| Battery life | 3…5 year(s) |
| Battery charging power | 782 W rated |
