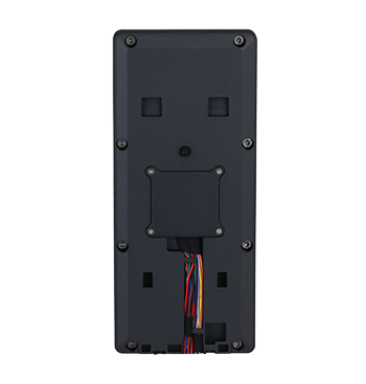

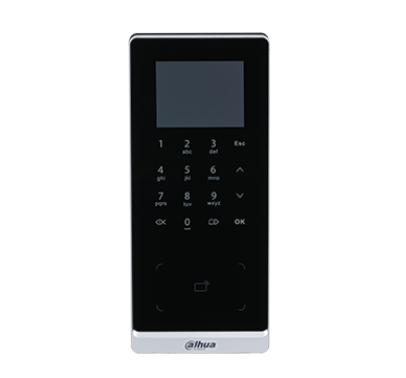

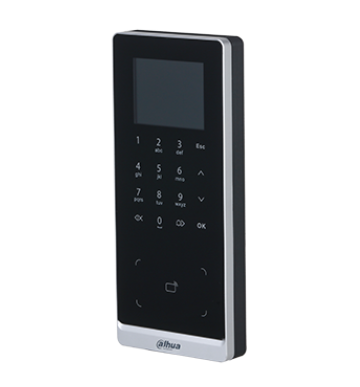

Dahua ASI2201H-W / ASI2201H-DW Access Standalone

> PC + ABS, suitable for indoor and outdoor use.
> 2.4″ LCD screen with a resolution of 240 × 320.
> Operating temperature: –30 °C to +65 °C (–22 °F to +149 °F).
> IP65 rated (silicone sealant is needed, see Quick Start Guide).
> Option to switch between reader and controller mode for added convenience.
> 30,000 users, 30,000 cards, 30,000 passwords, 50 admin accounts, and 150,000 records.
> Card/remote/password unlock and unlock through their combinations.
> IC card,ID card and NFC technology.
> Brand-new design with a slim, elegant structure.
> Supports access control security module expansion to avoid tampering, increasing access safety.
> Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm and external alarm.
> Supports guest users, patrol users, blocklist users, VIP users, general users, and others.
> TCP/IP and Wi-Fi communication; auto registration, P2P registration, and DHCP.
> Supports PC/mobile web clilent.
> Supports online update and USB update.
> Doorbell function.
> Audio prompts.
> Compatible with SmartPSS-AC and DSS Pro.

System

Main Processor

High-performance embedded processor

Network Protocol

IPv4; TCP; UDP; P2P

Basic

Display Screen

2.4″ LCD

Screen Type

LCD

Resolution

240 (H) × 320 (V)

Voice Prompt

Yes

Buzzer

Yes

Casing

PC + ABS/acrylic panel

Function

Unlock Mode

Card/Remote/Password unlock and unlock through their combinations

Card Type

IC or ID card

Period List

128

Holiday Period

128

Network Update

Yes

First User Unlock

Yes

Remote Verification

Yes

Restricted List/Trusted List

Yes

Wi-Fi

Yes

Peripheral Card Reader

1 × RS-485 card reader 1 × Wiegand card reader

Multi-user Authentication

Yes

Multi-factor Authentication

Yes

Web Configuration

Yes

Auto Registration

Yes

Performance

Card Reading Distance

0-5 cm (0″ to 1.97″)

User

User (Card) Type

General user, VIP user, patrol user, guest user, blocklist user and others

Capacity

User Capacity

30,000 users

Card Capacity

30,000

Password Capacity

30,000

Record Capacity

150,000 unlock records

Port

RS-485

1

RS-232

1

Wiegand

1-ch input/output

USB

1 × USB2.0 port

Network Port

1 × RJ-45, 100 Mbps

Alarm Input

2 (digital quantity)

Alarm Output

1 (relay)

Alarm Linkage

Yes

Doorbell

1

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-pass Back

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

General

Power Adapter

Optional

Power Supply

12 V DC, 1 A

Protection

IP65 (silicone sealant is needed, see the quick start guide)

Power Consumption

≤ 12 W

Product Dimensions

183 mm × 80 mm × 25.5 mm (7.20″ × 3.15″ × 1.00″) (H × W × D)

Packaging Dimensions

248 mm × 143 mm × 66 mm (9.76″ × 5.63″ × 2.60″) (H × W × D, 1 in an inner carton)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–95% (RH), no condensing

Operating Environment

Indoor; outdoor

Net Weight

262 g (0.58 lb)

Gross Weight

462 g (1.02 lb)

Accessory

Bracket (included)

Installation

Surface mount

Certifications

CE; FCC
