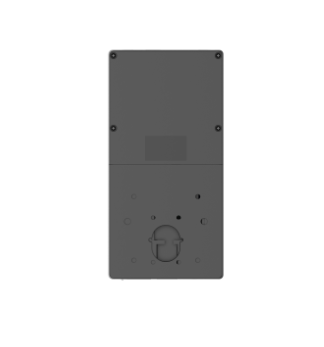

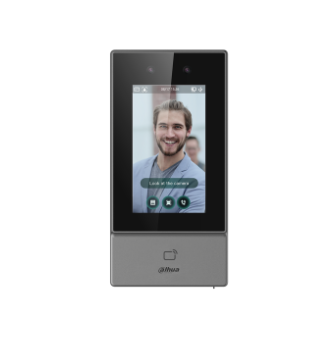

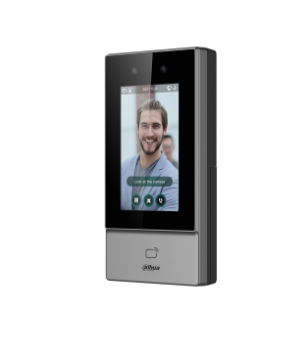

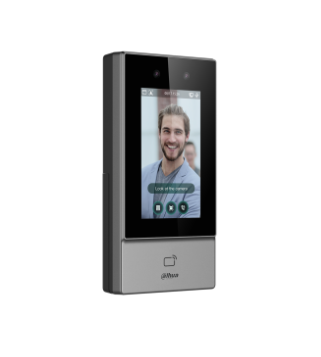

Dahua ASI6213S-PW Face Recognition Access Controller

描述

Face Recognition Access Controller

> 4.3 inch glass touch screen with a resolution of 272 × 480.

> 2-MP wide-angle dual-lens camera with IR illumination and DWDR.

> Multiple unlock methods including face, IC card and password.

> Supports 6,000 users, 6,000 faces, 6,000 passwords, 10,000 cards, 50 administrators, and 300,000 records.

> Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft); face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.

> Supports improved security and to protect against the device being forcefully opened, security module expansion is supported.

> Features face mask detection and safety helmet detection.

> Manages attendance and exports attendance records.

> Supports visitor QR code and doorbell function.

> Supports making video calls and using the app to receive alarm notifi cations, remotely unlock doors and to perform other tasks.

> TCP/IP and Wi-Fi connection.

> PoE power supply.

> IP65 rated.

Specifications

System

Main Processor

Embedded Processor

Button Type

Touch button

Network Protocol

UDP; TCP; IPv4; RTSP; SIP; P2P; RTP

OSDP Protocol

Yes

Interoperability

CGI; ONVIF

SDK and API

Yes

Basic

Product Type

Standalone

Display Screen

4.3″ LCD

Screen Type

Capacitive Touchscreen

Screen Resolution

272 (H) × 480 (V)

Camera

2-MP CMOS HD dual-lens camera

WDR

DWDR

Light Compensation

Auto IR

Voice Prompt

Yes

Buzzer

Yes

Casing Material

PC+GF

Function

Unlock Mode

Card, remote, password, QR code, face and combination unlock

Card Type

IC cards

Period List

128 periods

Holiday Period

128 periods

Network Update

Yes

First User Unlock

Yes

Remote Verification

Yes

Restricted List/Trusted List

Yes

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Peripheral Card Reader

1 × RS-485 card reader
1 × Wiegand card reader

Multi-user Authentication

Yes

Real-time Monitoring

Yes

Multi-factor Authentication

Yes

Capture Function

Yes

Web Configuration

Yes

Auto Registration

Yes

Performance

Card Reading Distance

0 cm–3 cm (0″–1.18″)

Face Recognition Height Range

1.1 m–2.0 m (3.61 ft–6.56 ft)

Face Recognition Distance

0.3 m–1.5 m (0.98 ft–4.92 ft)

Face Recognition Accuracy

99.9%

Face Recognition Time

0.2 s

User

User (Card) Type

Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2

Capacity

User Capacity

6000

Face Image Capacity

6000

Card Capacity

10000

Password Capacity

6000

Record Capacity

300000

Port

RS-485

1

Wiegand

1

USB

1

Network Port

1 × RJ-45 10/100 Mbps self-adaptive Ethernet port

Alarm Input

1

Alarm Output

1

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-pass Back

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

General

Power Adapter

Included

Power Supply

Stanard PoE
12 VDC, 1.5 A

Protection

IP65

Power Consumption

≤12 W

Product Dimensions

180.1 mm × 90.1 mm × 27.0 mm (7.09″ × 3.55″ × 1.06″) (L × W × H)

Packaging Dimensions

268 mm × 136 mm × 78 mm (10.55″ × 5.35″ × 3.07″) (L × W × H, in an inner carton)
590 mm × 432 mm × 302 mm (23.23″ × 17.01″ × 11.89″) (L × W × H, protection box)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

0%–90% (RH), non-condensing

Operating Altitude

0 m–1,300 m (0 ft–4265.09 ft)

Operating Environment

Outdoor; Indoor

Gross Weight

0.70 kg (1.54 lb)

Accessory

Wall mount bracket (included)

Installation

Turnstile mount; 86 case mount; wall mount; surface mount
