描述

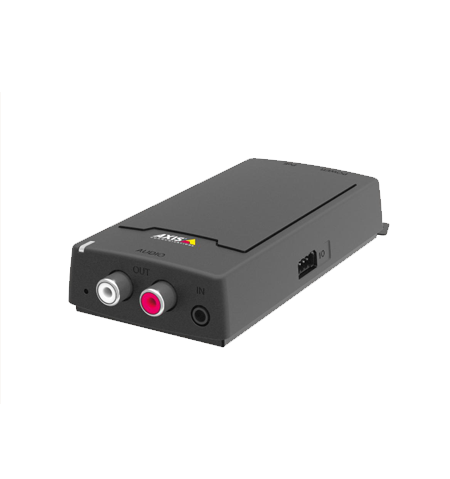

AXIS C8110
Network Audio Bridge
Features
- Combines analog and network audio
- I/O ports for buttons and relays
- PoE for easy installation
- Based on open standards
- Easy integration with other systems
Technical specifications
| Casing | IP20-rated Plastic and metal casing Color: Black NCS S 9000–N |
| Power | 8–28 V DC, max 4 W typical 1.85 W Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2 (max 4 W) |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs Power: 2-pin 5.0 mm terminal block DC input Audio: 3 pole 3.5 mm, RCA line out |
| Storage | Support for microSD/microSDHC/microSDXC card Max. size 128 GB For SD card recommendations see www.axis.com |
| Reliability | Designed for 24/7 operation. |
| LED indicators | Status LED |
| Operating conditions | –20 °C to 50 °C (4 °F to 122 °F) Humidity 10–85% RH (condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | x D x W: 24 x 56 x 128 mm (0.94 x 2.2 x 5.0 in) |
| Weight | 107 g (0.24 lb) |
| Optional accessories | Power supply For more accessories, see www.axis.com |
| Video management software | AXIS Camera Station, Video management software from Axis’ Application Development Partners available on www.axis.com/techsup/software |
