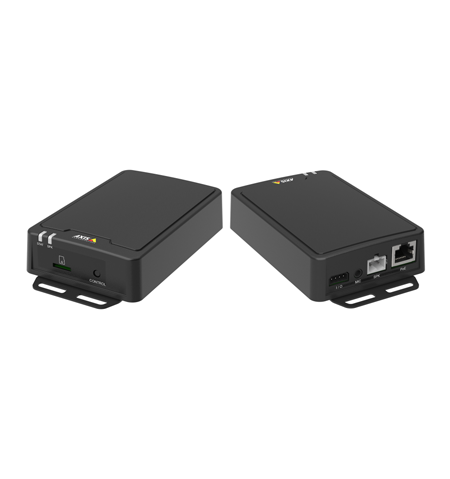

AXIS C8210
Network Audio Amplifier
Features
- 15W power amplifier with built-in DSP
- Use with one or multiple speakers
- System health monitoring
- One cable for power and connectivity (PoE)
- Open standards for easy integration
Technical specifications
| Casing | IP20-rated Metal casing Color: Black NCS S 9000–N |
| Environment | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3 (max 12.95 W), IEEE 802.3at Type 2 Class 4 (max 25 W) |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs Audio: 3 pole 3.5 mm line/mic-in (2.2 V rms), 2–pin 5.08 mm speaker-out |
| Storage | Support for microSD/microSDHC/microSDXC card Max. size 128 GB For SD card recommendations see www.axis.com |
| Reliability | Designed for 24/7 operation. |
| Operating conditions | -20 °C to 50 °C (4 °F to 122 °F) Humidity 10–85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Dimensions | 140 x 75 x 29 mm (5 1/2 x 2 15/16 x 1 1/8 in) |
| Weight | 257 g (0.57 lb) |
| Included accessories | nstallation Guide, AVHS authentication key, I/O connector, speaker connector, velcro, cable ties |
| Optional accessories | AXIS Device Microphone A For more accessories, see www.axis.com |
| Management software | AXIS Audio Manager C7050, AXIS Camera Station, video management software from Axis’ Application Development Partners available on www.axis.com/support/downloads |
