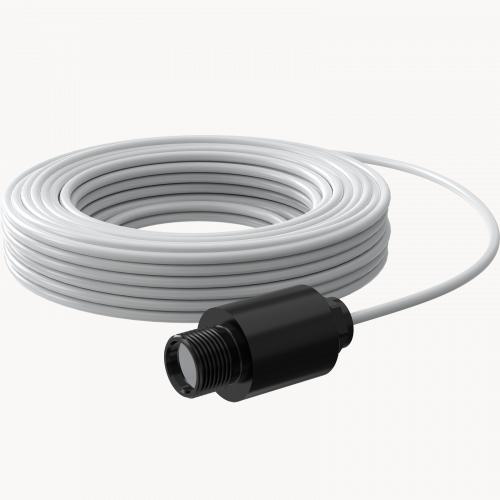

AXIS FA1080-E Thermal Sensor Unit
Outdoor-ready thermal sensor unit
AXIS FA1080-E offers all the benefits of thermal imaging at a price that’s within reach. Used together with AXIS FA54 Main Unit and analytics such as AXIS Fence Guard, it reliably detects people, vehicles, and objects regardless of light conditions or attempts at camouflage.
Technical specifications
Models: AXIS FA1080-E Thermal Sensor Unit 4 mm 8.3 fps / AXIS FA1080-E Thermal Sensor Unit 2.2 mm 8.3 fps
| Property description | ||
| Image sensor | Uncooled microbolometer | |
| Wide dynamic range | – | |
| Min illumination/ light sensitivity (Color) | – | |
| Min illumination/ light sensitivity (B/W) | – | |
| Thermal sensitivity (NETD) | <100 mK | |
| Thermal sensor resolution | 208×156 | |
| Property description | ||
| Max video resolution | 208×156 | |
| Max frames per second | 8.3 | |
| Day and Night functionality | – | |
| Electronic image stabilization | – | |
| Multiple color palettes | – | |
| Property description | ||
| Focal length * | 4 / 2.2 mm | |
| Varifocal lens | Off | |
| Aperture * | 1.2 / 1.05 | |
| Horizontal field of view * | 35.4 / 63 ° | |
| Vertical field of view * | 28 / 47 ° | |
| Lens mount | – | |
| Replaceable lens | – | |
| Property description | ||
| Zipstream | – | |
| H.264 | – | |
| H.265 | – | |
| Motion JPEG | – | |
| Property description | ||
| Audio Support | – | |
| Two-way audio | – | |
| Property description | ||
| Audio detection | – | |
| Active tampering | – | |
| Alarm inputs/outputs | – | |
| Serial connectors | – | |
| AXIS Camera Application Platform | – | |
| Digital I/O | – | |
| Property description | ||
| Power over Ethernet | – | |
| PoE Class | – | |
| Property description | ||
| HTTPS encryption | – | |
| IEEE 802.1X | – | |
| Property description | ||
| Built-in IR | – | |
| Local storage (memory card slot) | – | |
| Operating temperature | -30 to 55 °C | |
| Outdoor Ready | Yes | |
| Vandal rating | – | |
| IP rating | IP66, IP67 | |
| Property description | ||
| Power (max) | – | |
| Power (average) | – | |
| DC input voltage | – | |
* Some technical specifications may vary depending on which hardware option you choose.
