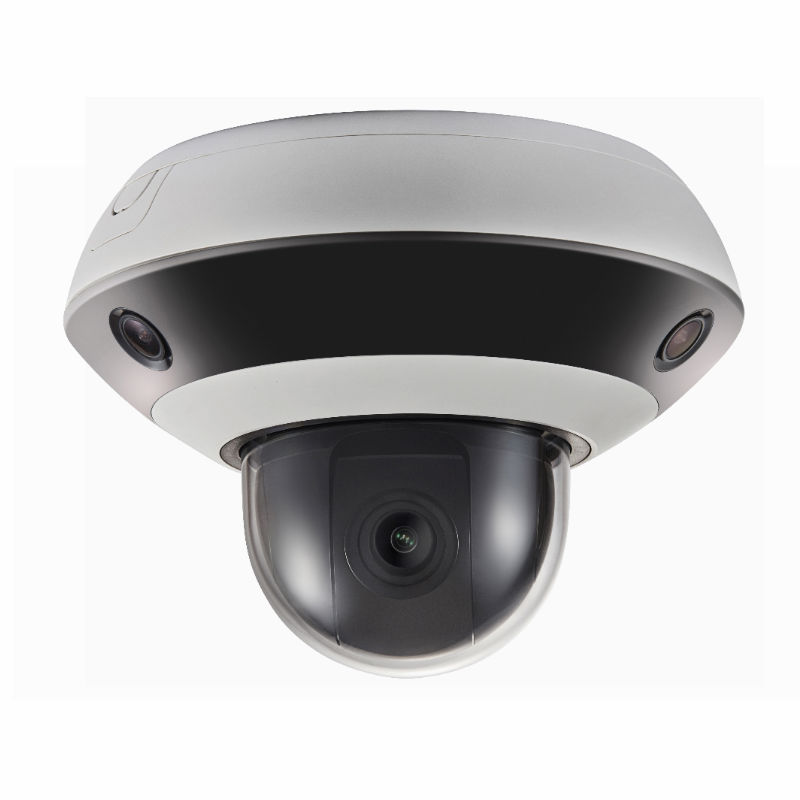

PT3 Mini PanoVu

  • 3 lenses in one camera cover up to 360° field of view, ensuring zero-blind zone monitoring
  • The camera can be widely used in multiple indoor scenes such as retail store, classroom, office hall, hotel lobby, etc
  • Panoramic camera linked to a PTZ: capturing 360° images with the panoramic camera, as well as close-up images with the PTZ camera
  • Built-in IR light: IR range of 15 meters provides good visibility in low or even zero-light environments
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements


Smart Features

Basic Event Detection: Motion Detection, Video Tampering Detection, Exception

Smart Detection: Audio Exception Detection, Intrusion Detection, Line Crossing Detection

Smart Record: ANR (Automatic Network Replenishment)

Smart Image Enhancement: HLC/BLC/3D DNR/Regional Exposure


Image Sensor: [panoramic channel] Three 1/2.8″ progressive scan CMOS [PTZ channel] 1/2.8″ progressive scan CMOS

Min. Illumination: Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR

Day &Night: IR Cut Filter


FOV: [panoramic channel] Horizontal field of view: 128.5° × 3 Vertical field of view: 75.7° Diagonal field of view: 144° [PTZ channel] Horizontal field of view: 120° to 56.6° (wide – tele) Vertical field of view: 61.8° to 31.7° (wide – tele) Diagonal field of view: 149° to 65° (wide – tele)

Focal Length: [panoramic channel]: 2mm [PTZ channel]: 2.8-12mm

Aperture Range: F2.0


Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Camera Module

Privacy Mask: [panoramic channel]:4 × 3 programmable privacy masks [PTZ channel]:8 programmable privacy masks


Audio Interface: 1-ch audio input and 1-ch audio output


Power Supply: 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 Max.24 W (Max. 6 W for IR)

Material: PC + ABS & Aluminum alloy

Dimensions: Φ 183 mm × 133.2 mm (Φ 7.20″ × 5.24″)

Weight: Approx. 0.9 kg (1.98 lb)

Protection Level: TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection

Working Temperature: -10°C to 50°C (14°F to 122°F)

Working Humidity: ≤ 90%
