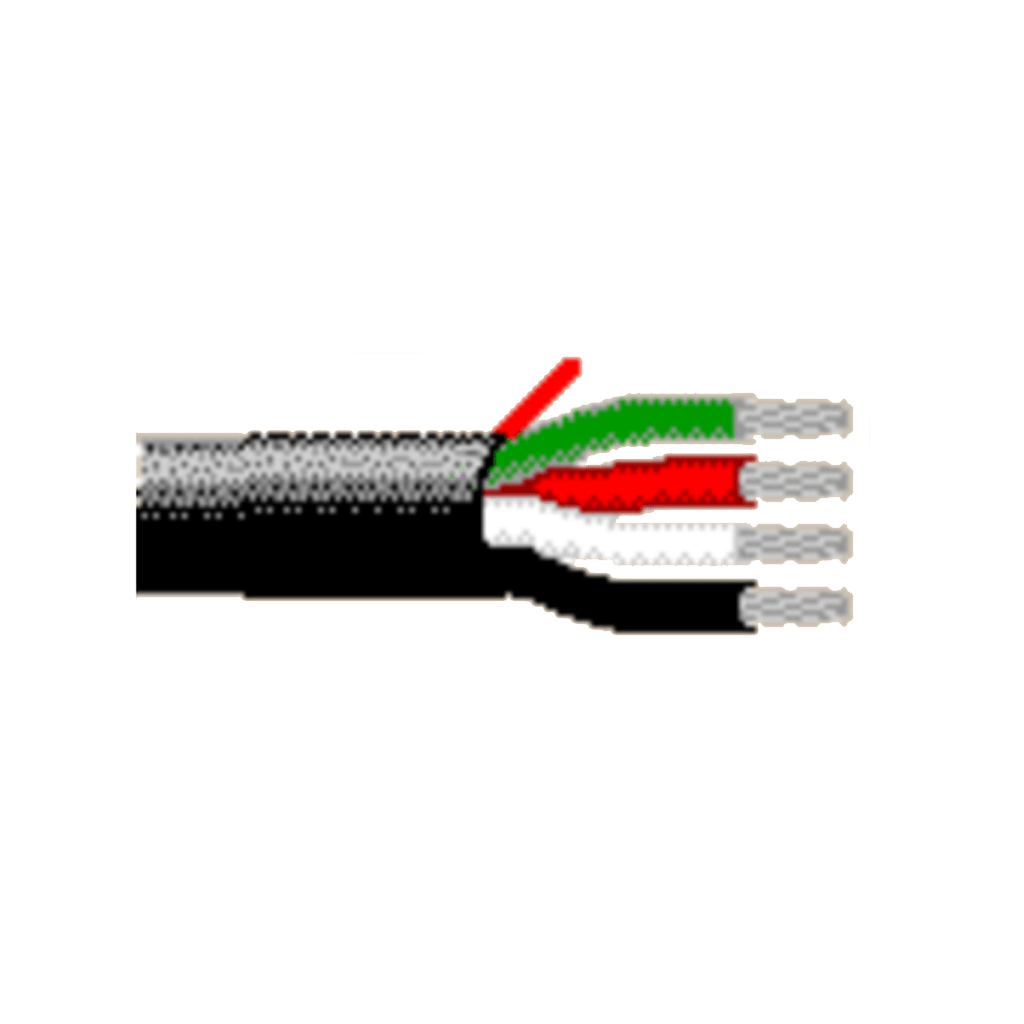

BELDEN 1317SB
Shipboard Speaker, 4 conductor 12 AWG TC, CMG-LS
Product Description
Shipboard Speaker, 4 conductor 12 AWG stranded tinned copper conductors, polypropylene insulation, LSZH jacket with ripcord.
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.115 in (2.92 mm) | Black, White, Red, Green |
| Inner Shield | ||
| Shield Type | ||
| No Shield | ||
| Outer Shield | ||
| Shield Type | ||
| No Shield | ||
| Outer Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.382 in | |
| Temperature | ||
| UL Temperature | Operating | |
| 105°C | -30°C To +105°C | |
