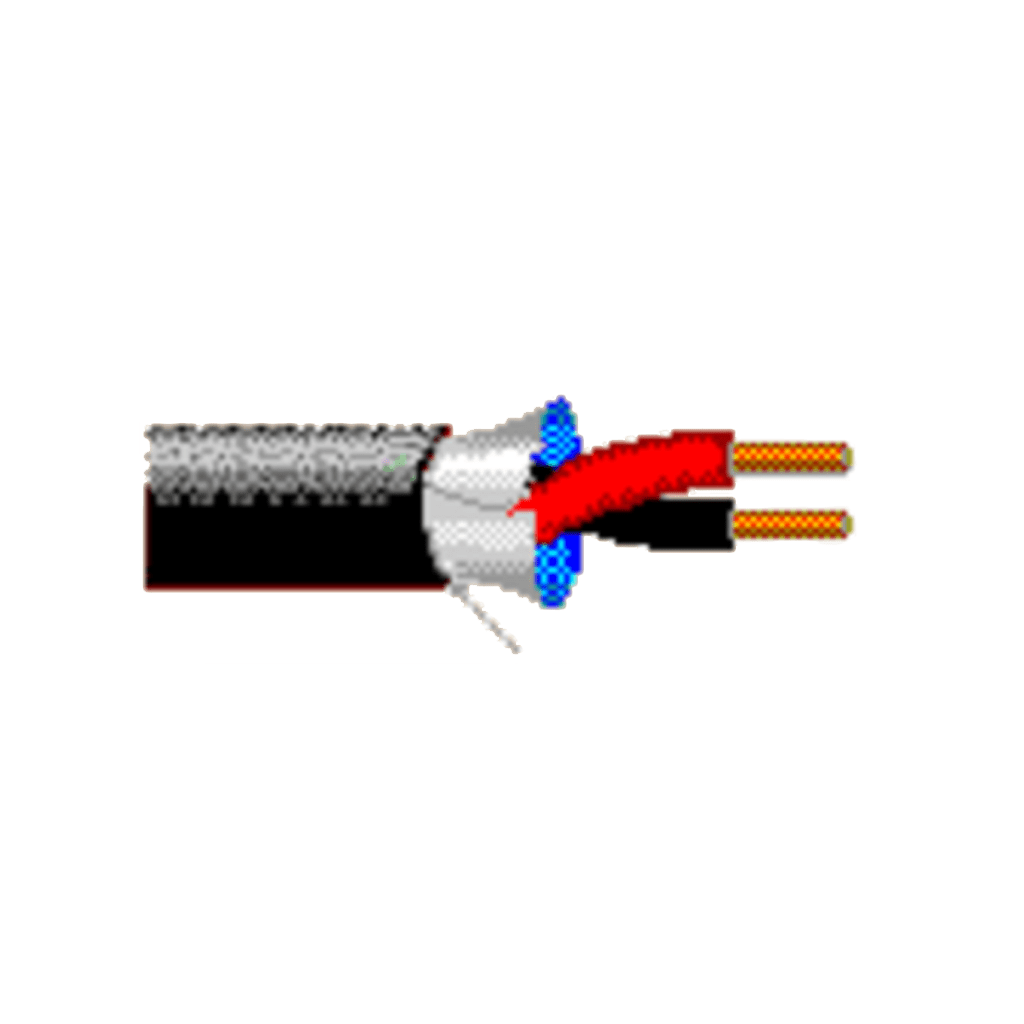

BELDEN 1320SB
Fire Alarm, #18-2c, LSZH Jacket, CMG-LS, FPLR, Shipboard ABS Type Approved
Product Description
18 AWG solid bare copper conductors, ceramifiable silicone insulation, Beldfoil® shield, drain wire, LSZH jacket.
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Silicone Rubber | 0.034 in (0.86 mm) | 0.109 in (2.77 mm) | Black and Red |
| Outer Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7×28) TC |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.045 in (1.1 mm) | 0.314 in | |
| Temperature | |||
| UL Temperature | Operating | ||
| 105°C | -20°C To +105°C | ||
