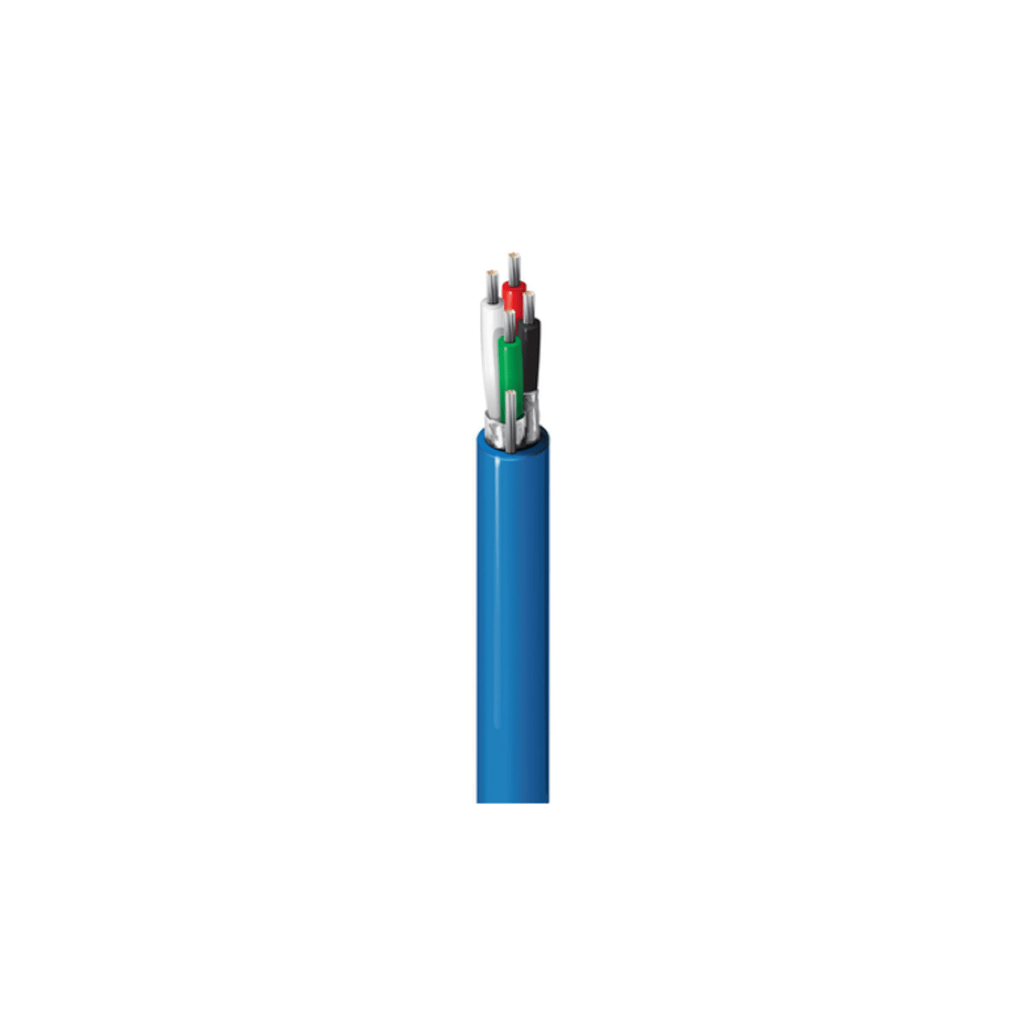

BELDEN 1325A
Security & Sound, 2 Pr #22 Str TC, Ind. Foil Shielded, Flamarrest® Jkt, CMP
Product Description
Security, Speaker & Control, 2 Pair 22 AWG (7 x 30) Tinned Copper, Flamarrest® Insulation, Individually Foil Shielded, Flamarrest® jacket, CMP
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.0095 in (0.24 mm) | 0.048 in (1.2 mm) | Black & Red, White & Green |
| Inner Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | Notes |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC | each pair Individually taped – Foil out |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.158 in | ||
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C to +75°C | |||
