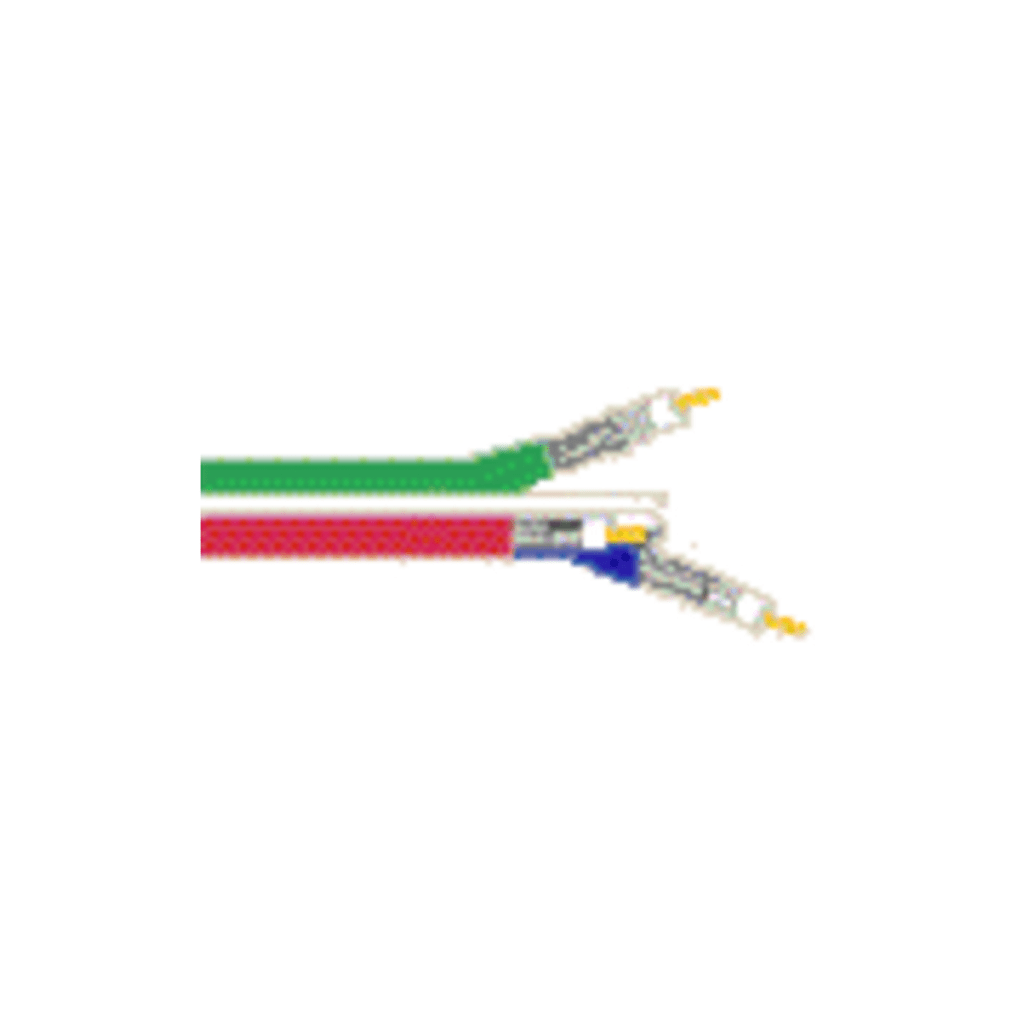

BELDEN 1855S6
VideoFLEX® Snake, Banana Peel, Mini, #23-6 Coax, CMR
Product Description
VideoFLEX® Digital Coax Snake Cable, Riser-CMR, 6-Sub-Miniature 23 AWG, solid bare copper conductors, foam HDPE core, Duofoil® +95% tinned copper braid, individual PVC jackets, Banana Peel construction
Technical Specifications
| Insulation | |||
| Material | Nominal Diameter | ||
| PE – Polyethylene (Foam) | 0.102 in | ||
| Type | Layer | Material | Coverage [%] |
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | 100% |
| Braid | 2 | Tinned Copper (TC) | 95% |
| Inner Jacket | |||
| Material | Nominal Diameter | ||
| PVC – Polyvinyl Chloride | 0.159 in | ||
| Outer Jacket | |||
| Material | Nominal Diameter | ||
| Banana Peel (No Overall Jacket) | 0.477 in | ||
