BELDEN 1860A

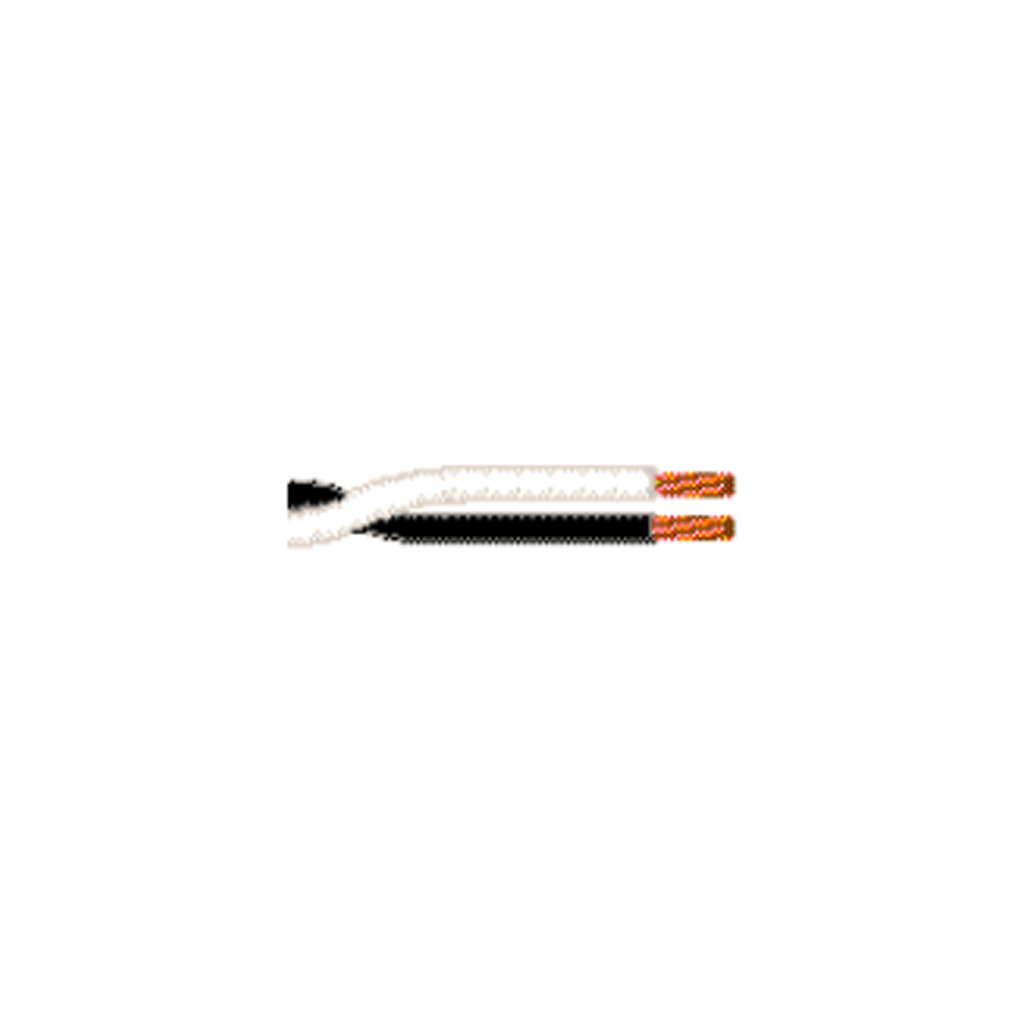

Speaker Cable, 2 Conductor 12 AWG BC, Unshielded, CMP
Product Description
Speaker Cable, 2 Conductor 12 AWG stranded (19×25) high conductivity bare copper conductors with Flamarrest® insulation, cabled in an open twisted construction, Plenum-CL2P
Technical Specifications
| Insulation | |
| Material | Nom. Insulation Diameter |
| PVC – Polyvinyl Chloride | 0.135 in (3.43 mm) |
| Outer Shield | |
| Material | |
| No Shield | |
| Outer Jacket | |
| Nom. Diameter | |
| 0.27 in | |
| Temperature | |
| Operating | |
| -20°C To +75°C | |
