BELDEN 1883A

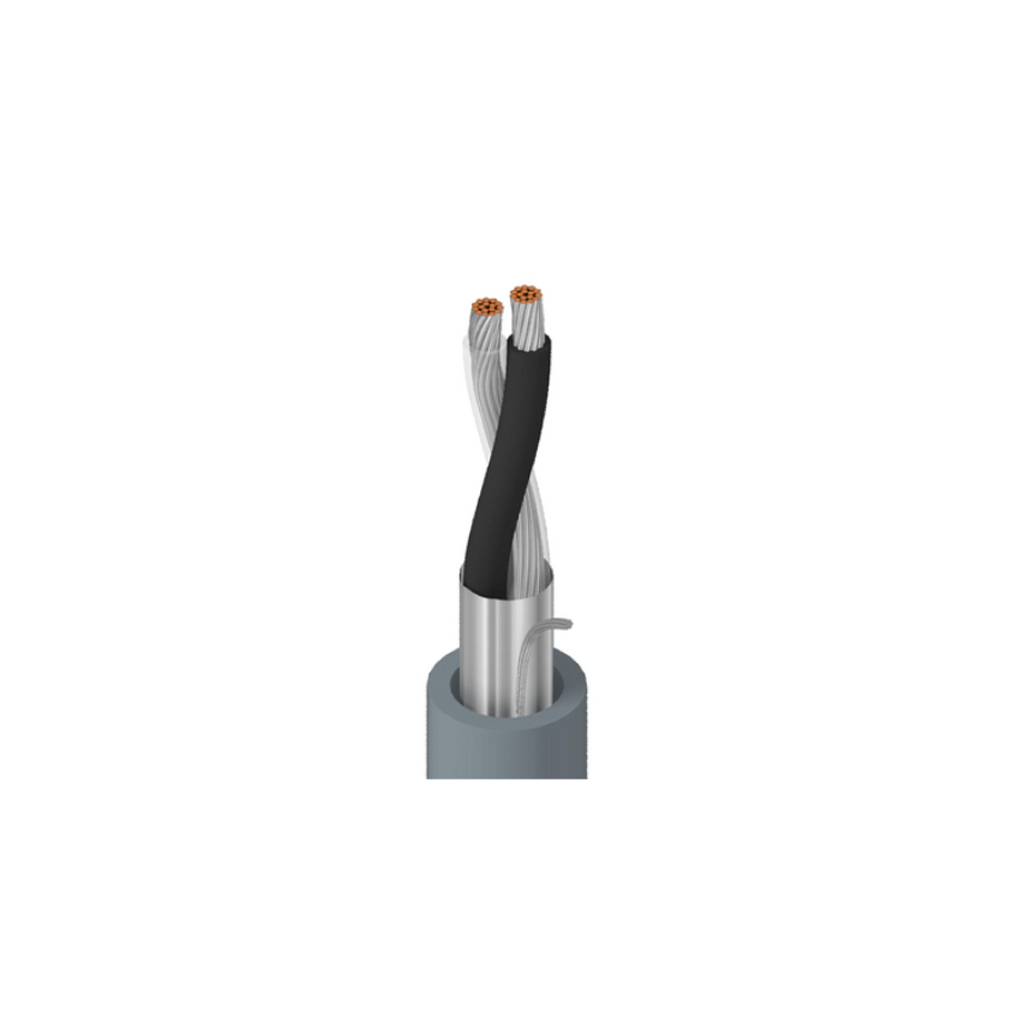

Line Level Audio Cable, 1 Pr #24 Str TC, O/A Foil, PVC Jkt, CMR
Product Description
Line Level Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, PP insulation, Overall Beldfoil® Shield, PVC Jacket, CMR
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.010 in (0.25 mm) | 0.043 in (1.1 mm) | Black & Red |
| Inner Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | Notes |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC | Drain wire is inside foil shield |
