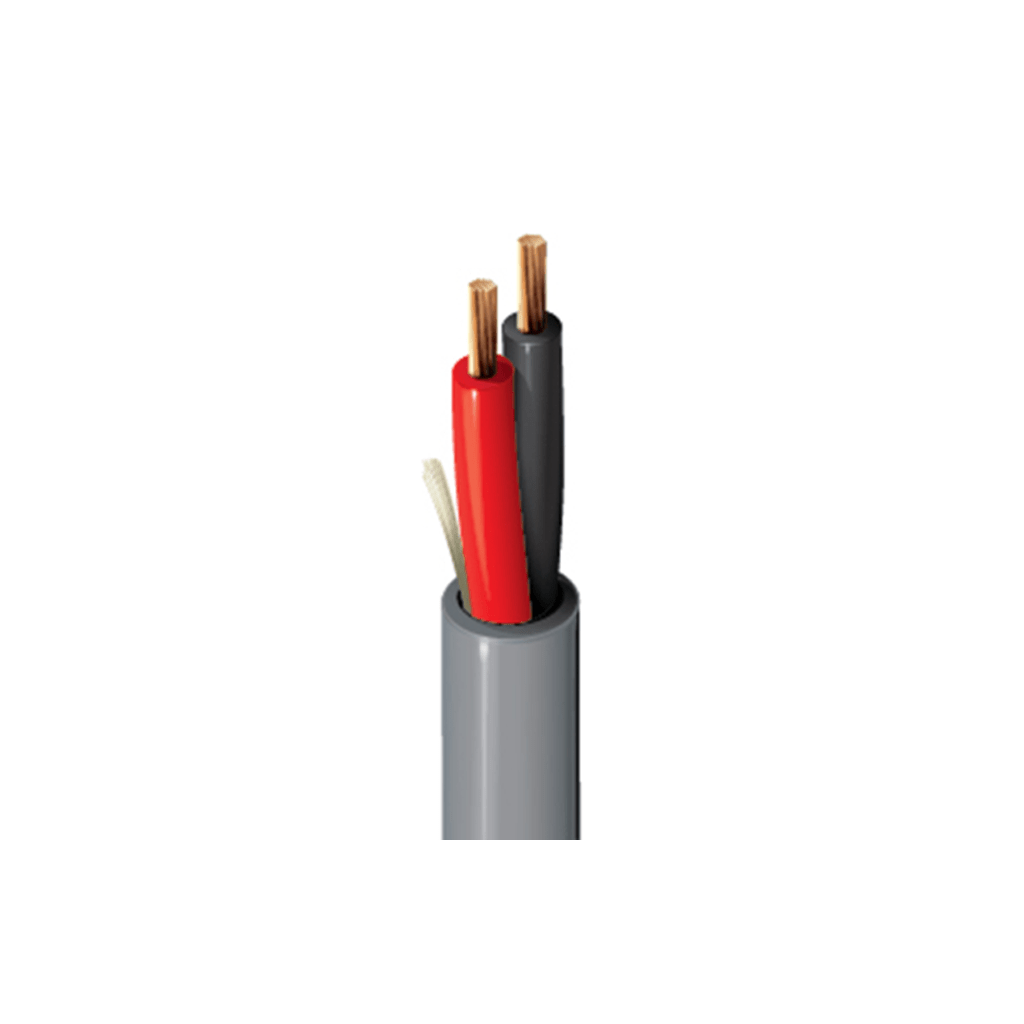

BELDEN 4300ULW
Security & Sound, 2 Conductor 18 AWG BC, LSZH, Cca
Product Description
Security & Commercial Audio Cable, 2-18 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter |
| Conductor(s) | LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.25 mm (0.0098 in) | 1.72 mm (0.0677 in) |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.0 mm (0.039 in) | 5.5 mm (0.22 in) | Yes |
