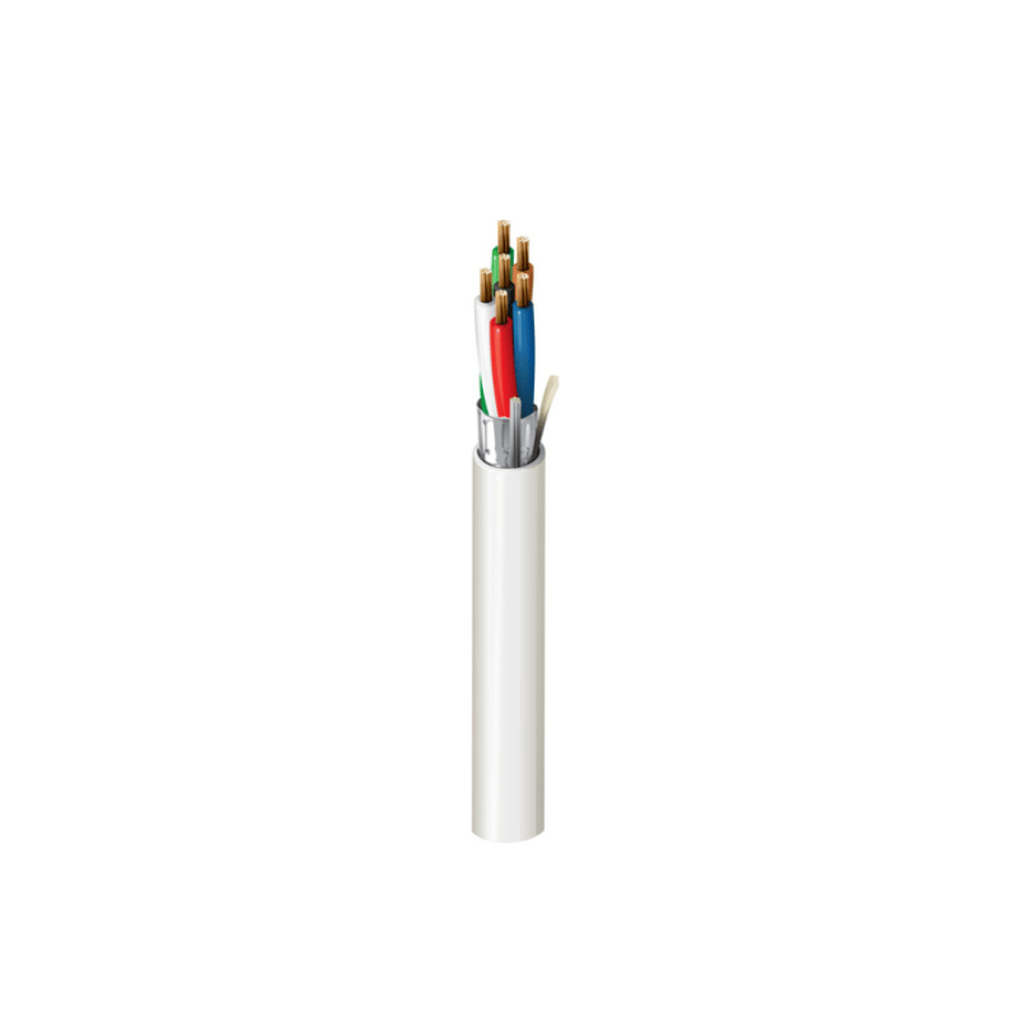

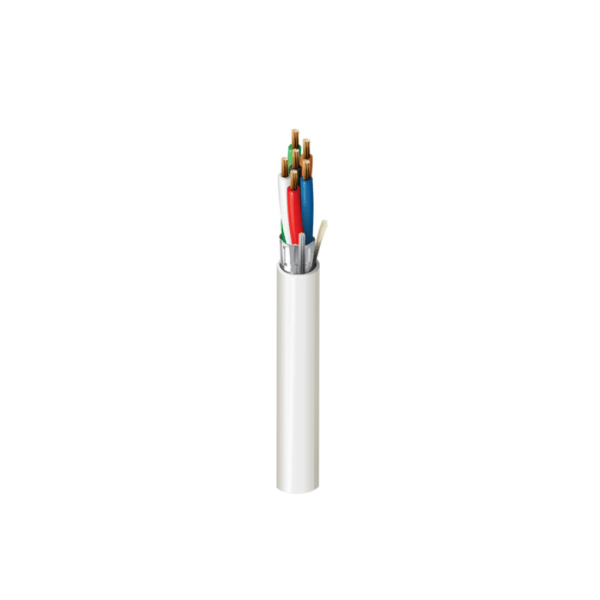

BELDEN 4304FLW
Security & Sound, 6 Conductor 18 AWG BC, BC, LSZH, Shielded, Cca
Product Description
Security & Commercial Audio Cable, 6-18 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, Beldfoil® shield and LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.35 mm (0.014 in) | 1.72 mm (0.0677 in) | Black, Red, White, Green, Brown, Blue |
| Outer Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.0 mm (0.039 in) | 7.4 mm (0.29 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C To +70°C | |
