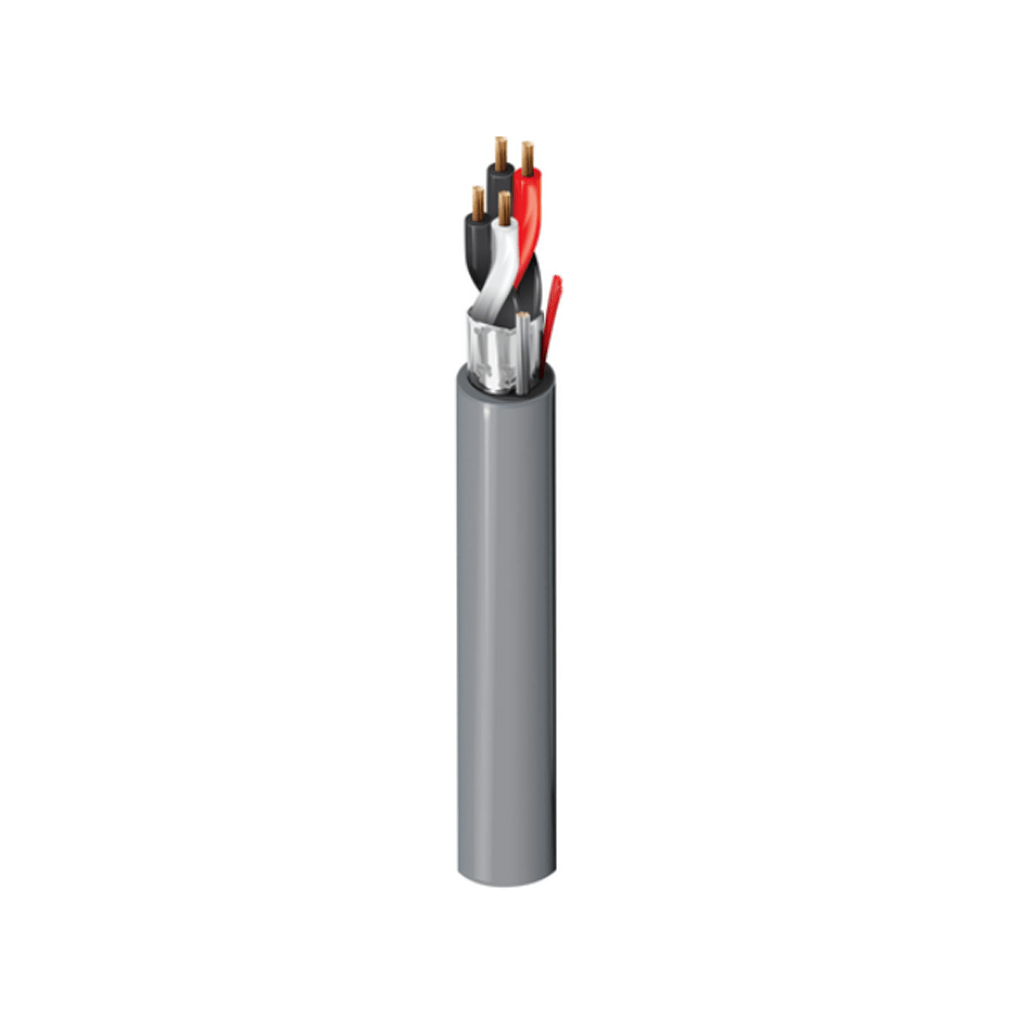

BELDEN 4341FLW
Security & Sound, 2 Pair 18 AWG BC, LSZH, Shielded, Cca
Product Description
Security & Commercial Audio Cable, 2-18 AWG stranded bare copper pairs with Low Smoke Zero Halogen insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.26 mm (0.010 in) | 1.72 mm (0.0677 in) | |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.1 mm (0.043 in) | 8.10 mm (0.319 in) | Yes |
| Temperature | |||
| Installation | Storage | ||
| -20°C To +70°C | -30°C to +70°C | ||
