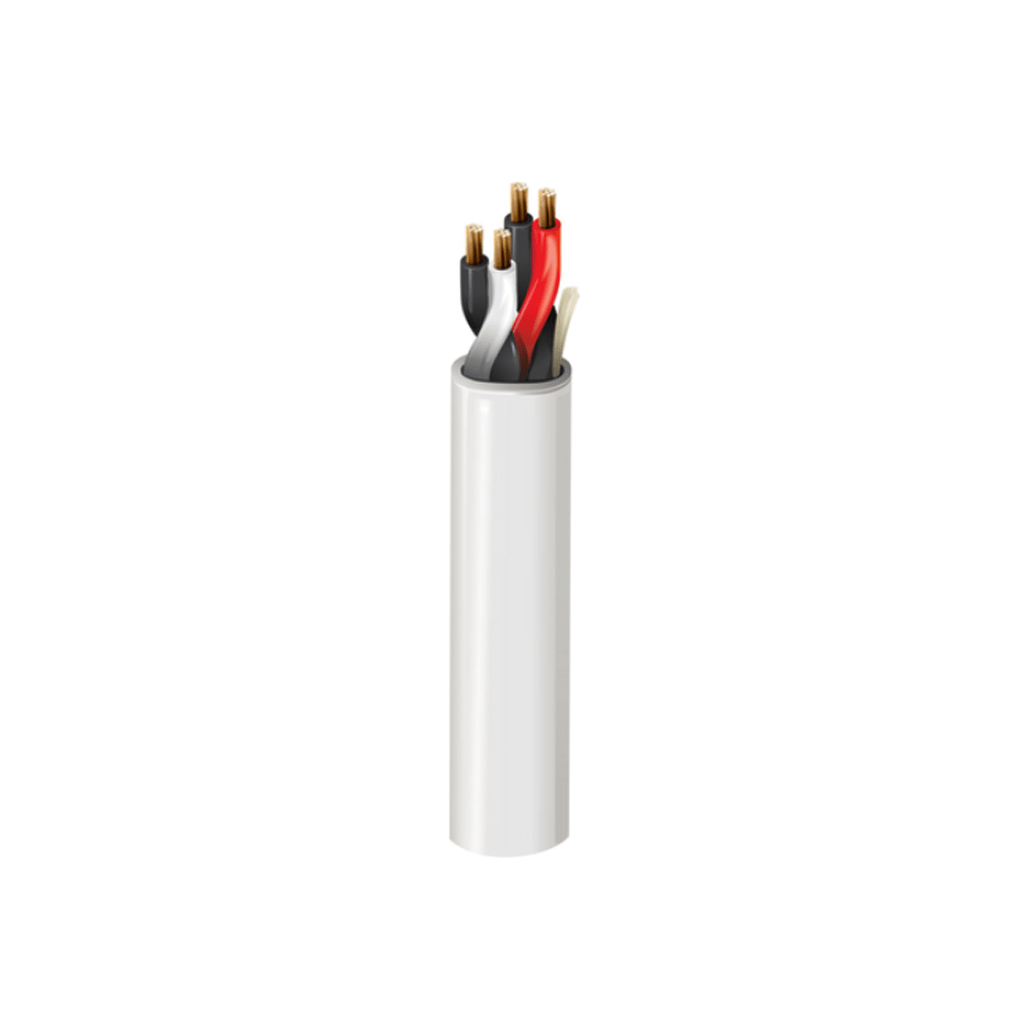

BELDEN 4541UE
Security & Sound, 2 Pair 22 AWG BC, LSZH
Product Description
Security & Commercial Audio Cable, 2PR-22 AWG stranded bare copper pairs with polypropylene insulation, LSZH jacket with ripcord
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.2 mm (0.0079 in) | 1.07 mm (0.0421 in) | Black & Red, Black & White |
| Outer Shield | |||
| Material | |||
| No Shield | |||
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.4 mm (0.016 in) | 4.8 mm (0.19 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C to +70°C | |
