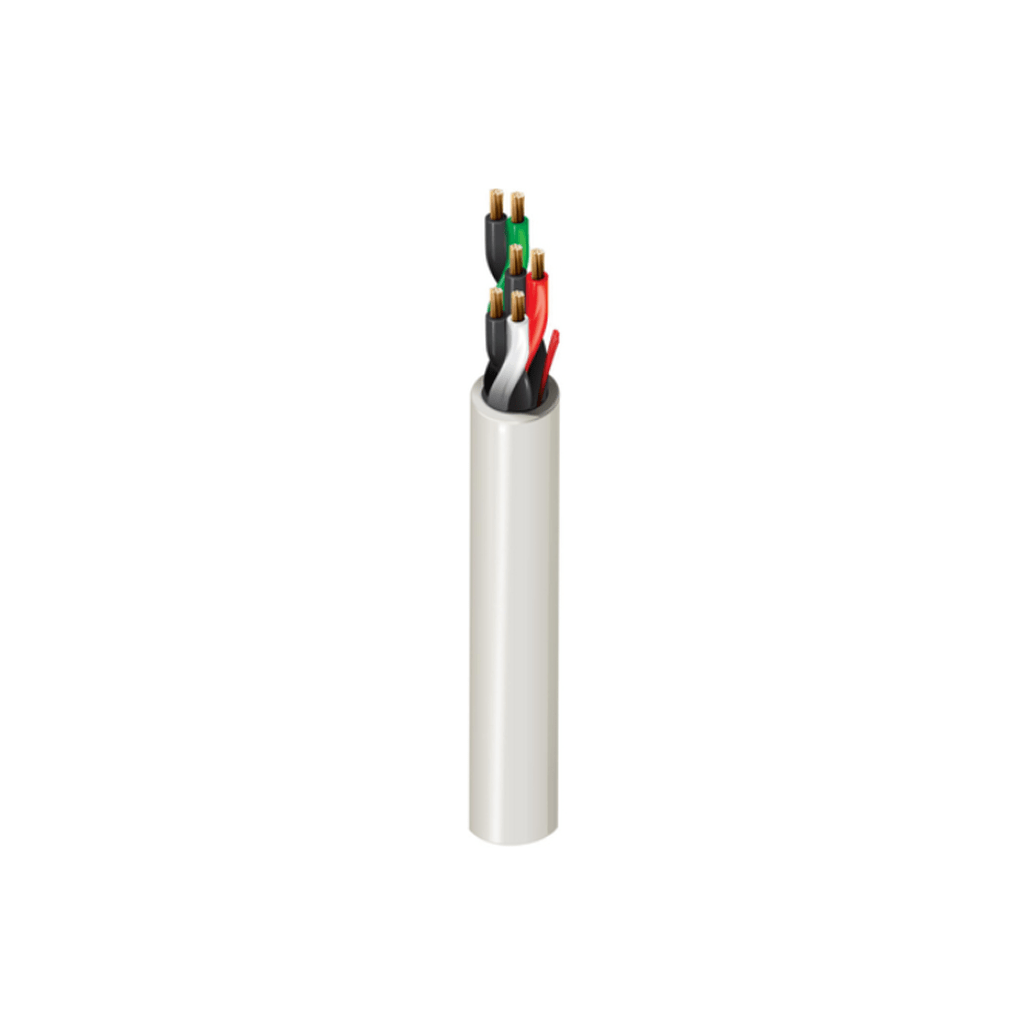

BELDEN 4542UE
Security & Sound, 3 Pair 22 AWG BC, LSZH
Product Description
Security & Commercial Audio Cable, 3-22 AWG stranded bare copper pairs with polypropylene insulation, LSZH jacket with ripcord
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene | 0.2 mm (0.0079 in) | 1.07 mm (0.0421 in) | Black & Red, Black & White, Black & Green |
| Outer Shield | |||
| Material | |||
| No Shield | |||
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.38 mm (0.015 in) | 5 mm | |
| Temperature | |||
| Storage | |||
| -30°C to +70°C | |||
