BELDEN 5002U1
Security & Sound, 4 Conductor 12 AWG TC, Waterblocked, CL3
Product Description

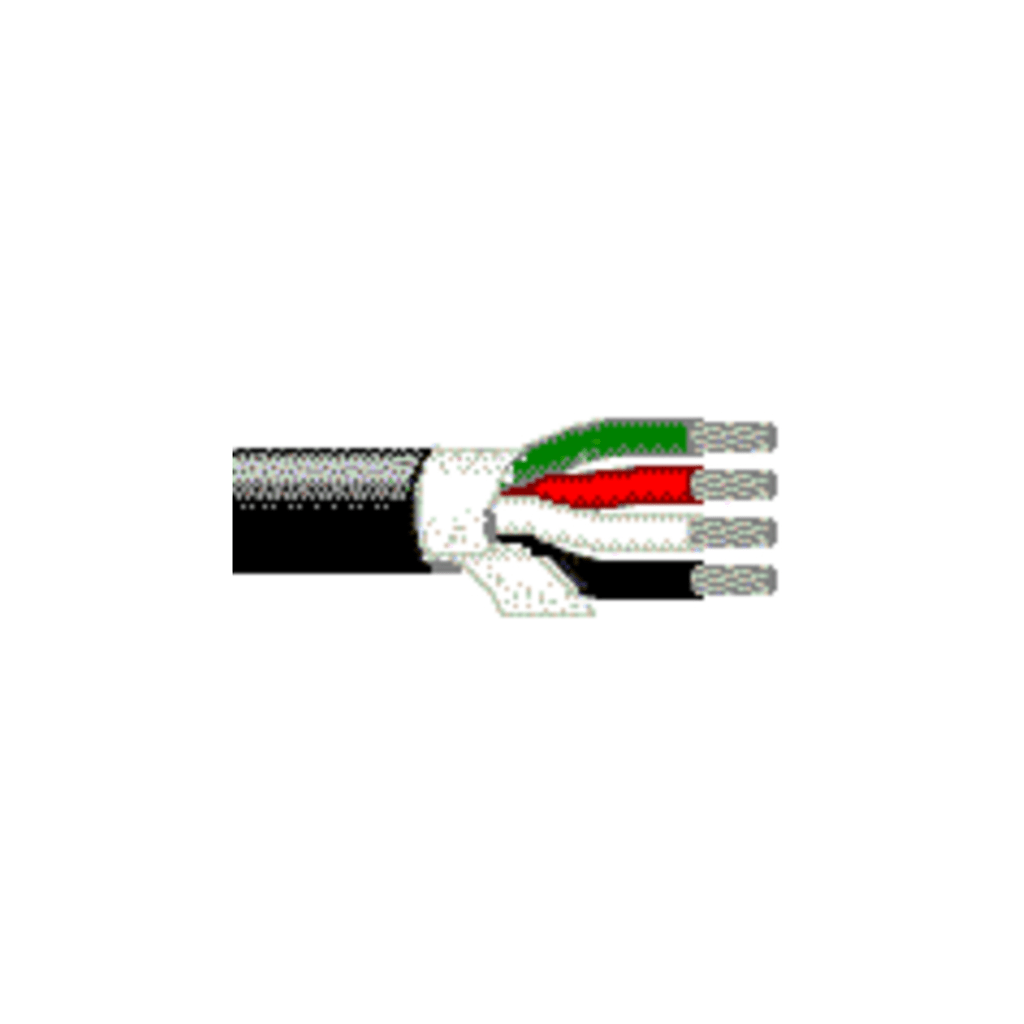

Security & Commercial Audio Cable, 4 Conductor 12 AWG stranded (19×25) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PVC – Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.119 in (3.02 mm) | Black, Red, White, Green |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| PVC – Polyvinyl Chloride | 0.029 in (0.74 mm) | 0.377 in (9.58 mm) | Yes |
| Temperature | |||
| UL Temperature | Operating | ||
| 105°C | -20°C To +105°C | ||
