BELDEN 5100U1
Security & Sound, 2 Conductor 14 AWG TC, Waterblocked, CL3
Product Description

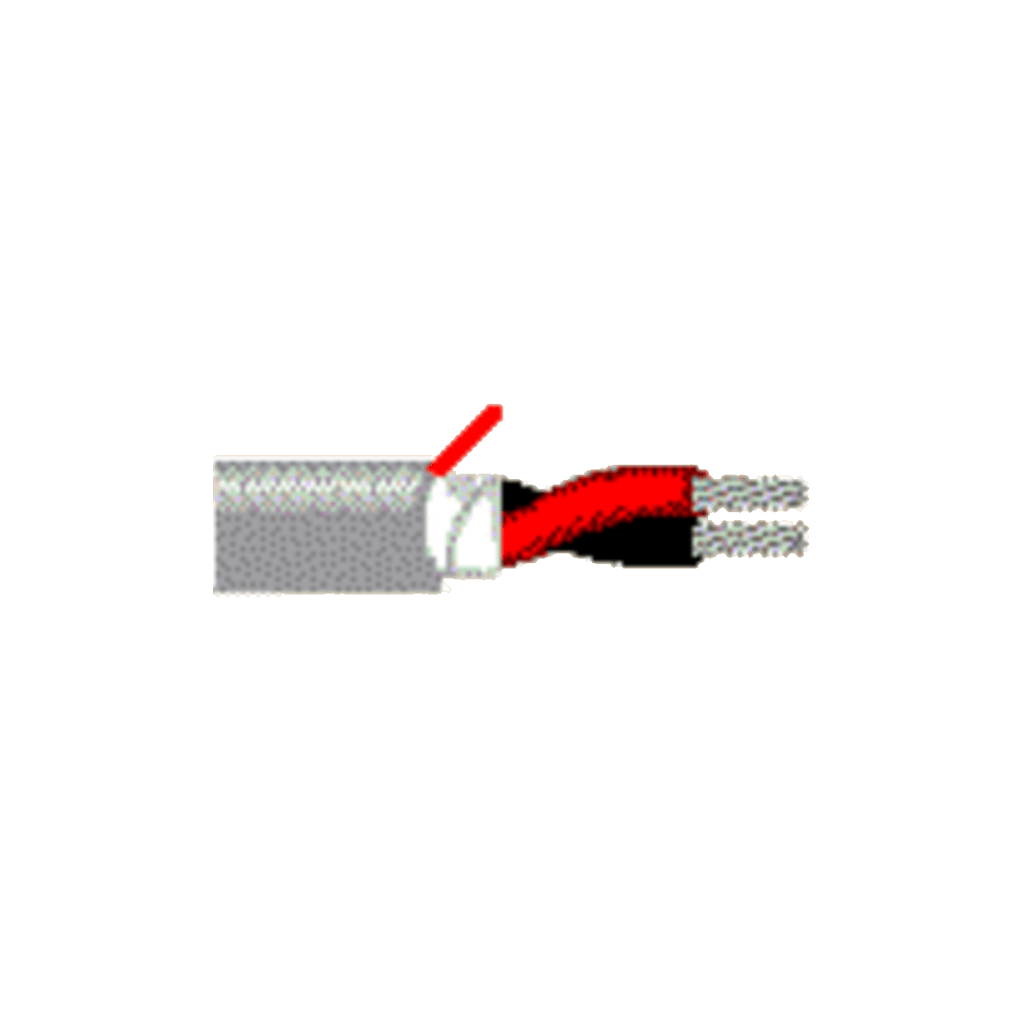

Security & Commercial Audio Cable, 2 Conductor 14 AWG stranded (19×27) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.104 in (2.64 mm) | Black, White |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.29 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 105°C | -30°C To +105°C | |||
