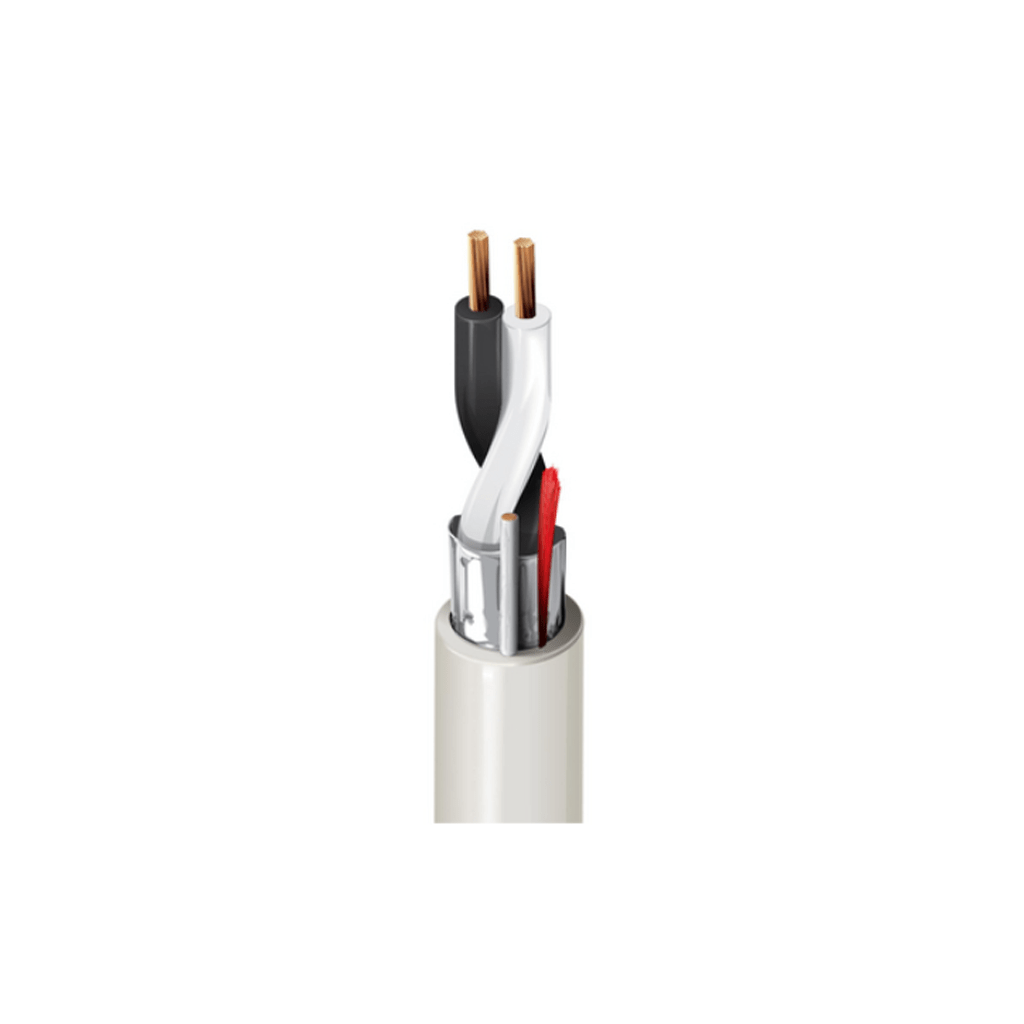

BELDEN 6100FE
Security & Sound, 2 Conductor 14 AWG BC, Shielded, CL2P
Product Description
Security & Commercial Audio Cable, Plenum-CL2P, 2-14 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.012 in (0.30 mm) | 0.094 in (2.4 mm) | Black, White |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.220 in (5.59 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C to +75°C | |||
