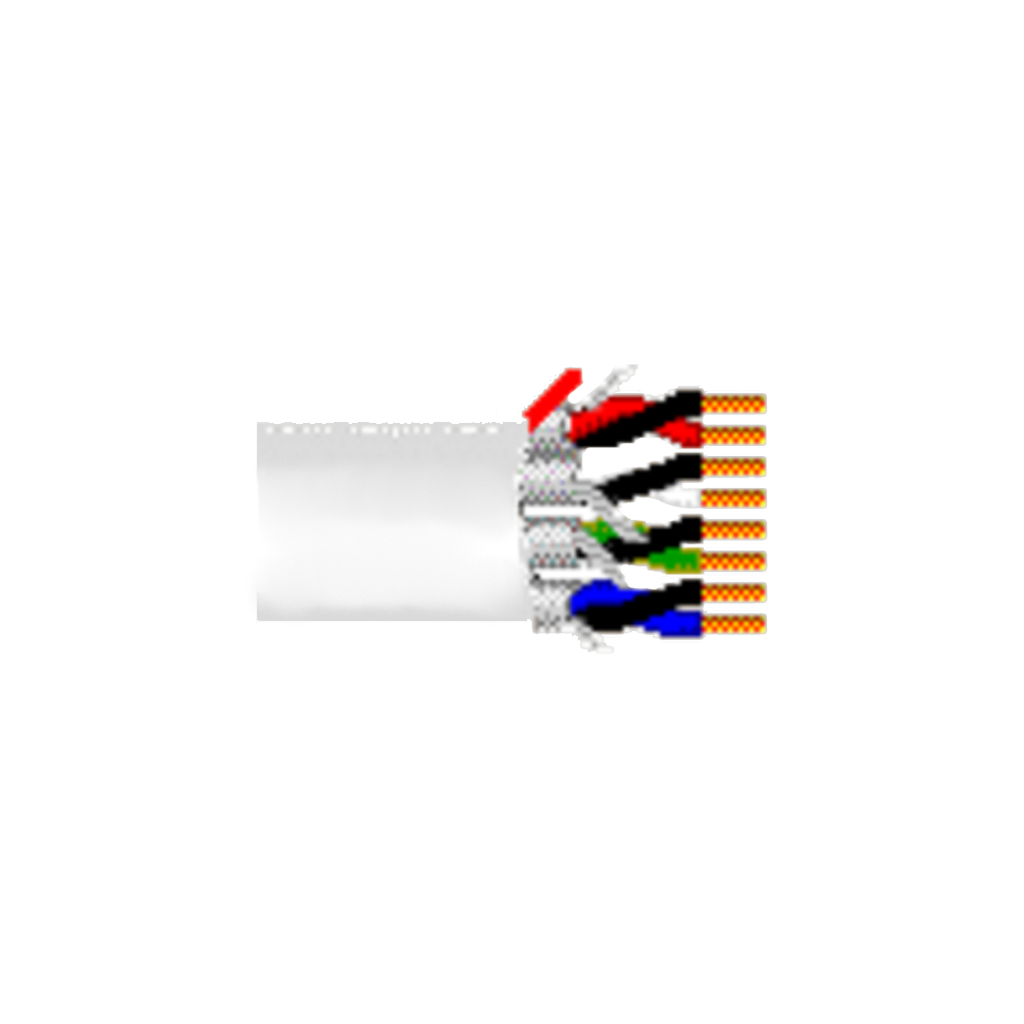

BELDEN 6345PC
Security & Sound, 6 Pair 18 AWG BC, Individually Shielded, Plenum
Product Description
Security, Pro Audio & Intercom Cable, 6 Pair 18 AWG stranded (7×26) bare copper pairs with FEP insulation, Individually Beldfoil® shielded, Plenum, Flamarrest® jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | FEP – Fluorinated Ethylene Propylene | 0.0095 in (0.24 mm) | 0.0655 in (1.66 mm) | Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Red |
| Inner Shield | ||||
| Element | Shield Type | Material | Coverage | Drainwire Type |
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| FEP – Fluorinated Ethylene Propylene | 0.019 in (0.48 mm) | 0.402 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | ||||
