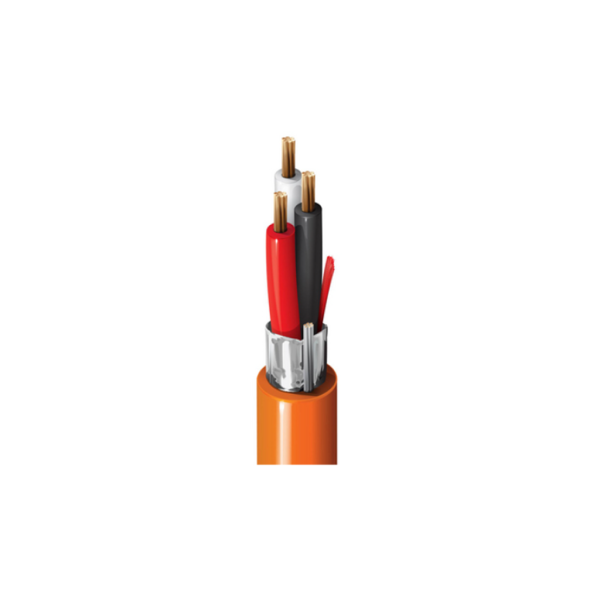

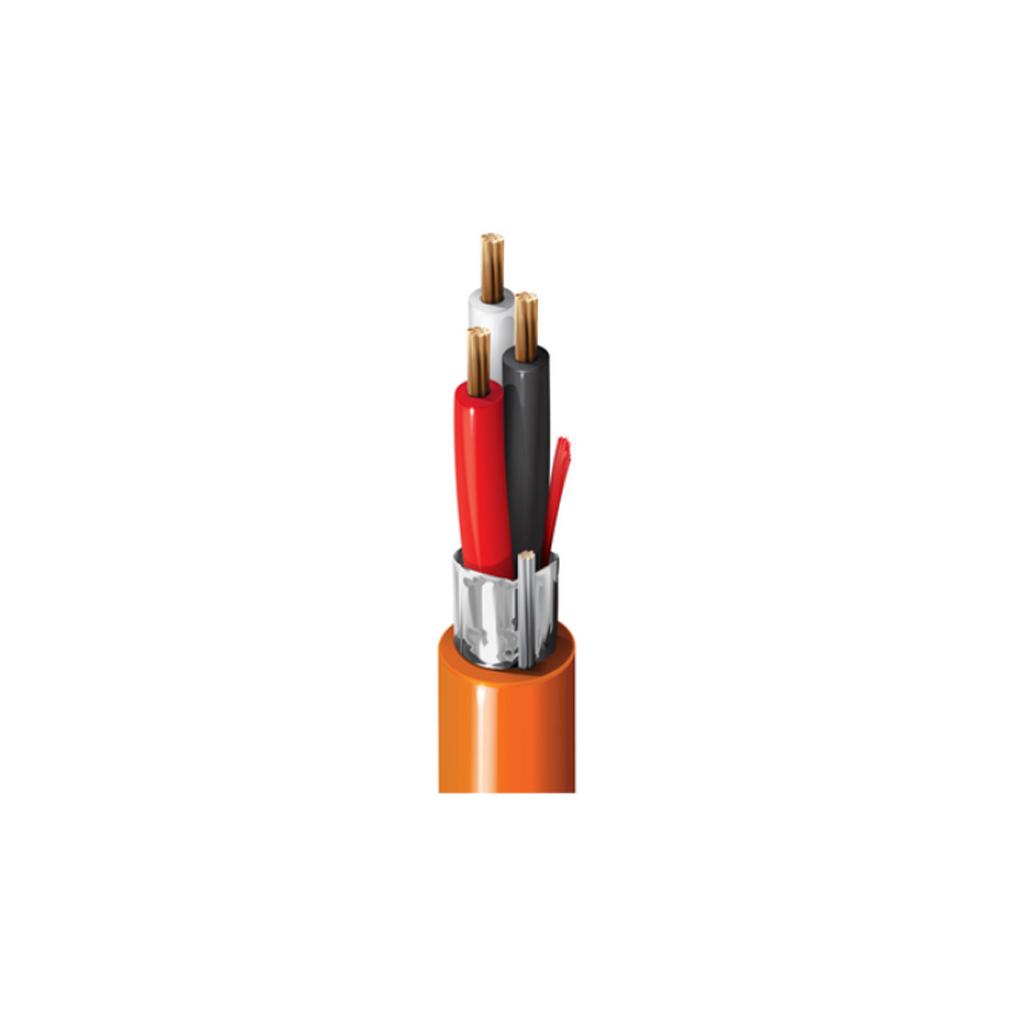

BELDEN 6501FE
Security & Sound, 3 Conductor 22 AWG BC, Shielded, Plenum
Product Description
Security & Sound Cable, 3 Conductor 22 AWG stranded (7×30) bare copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.009 in (0.23 mm) | 0.047 in (1.2 mm) | Black, Red, White |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | Bi-Laminate (Alum+Poly) | 24 AWG (7×32) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.135 in (3.43 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C to +75°C | |||
