BELDEN 70050
1 PAIR AES/EBU, 22AWG, ISTP, LSZH
Product Description

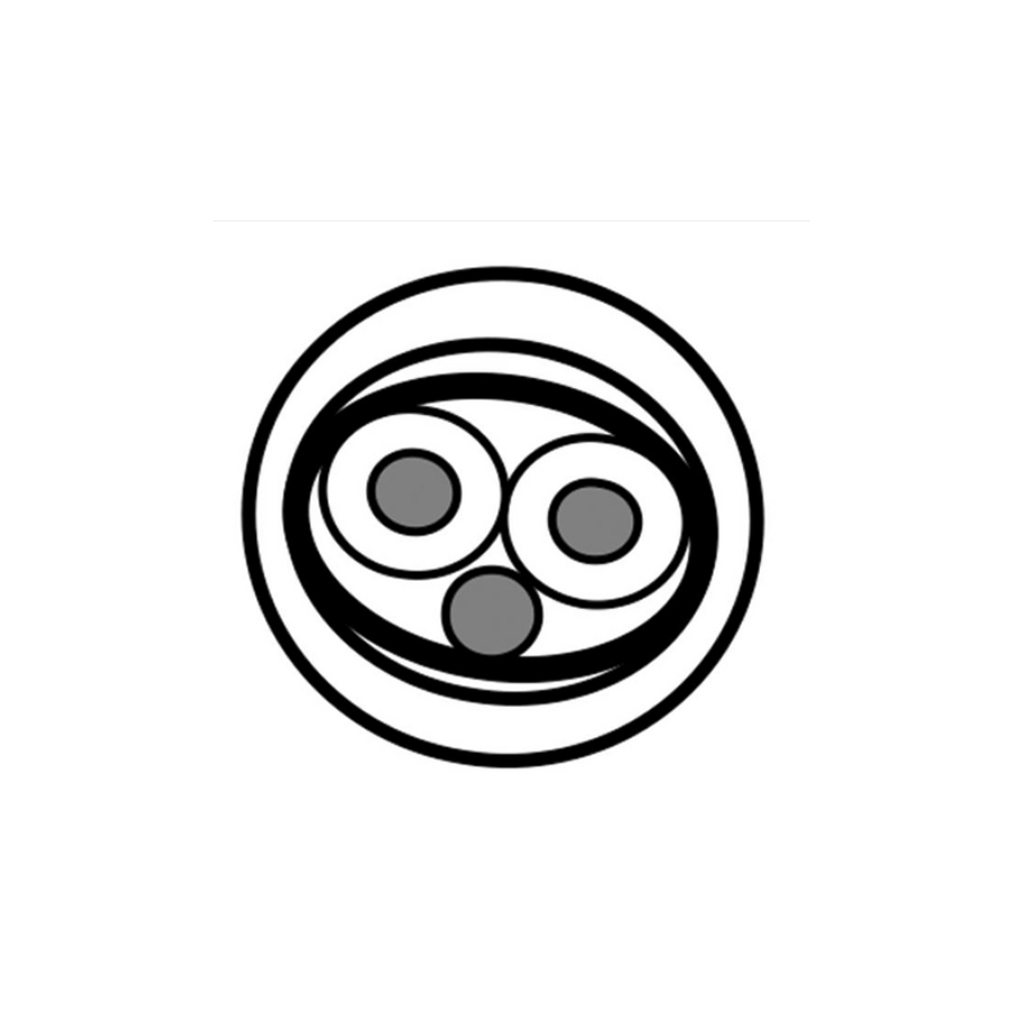

DIGITAL AUDIO 1 PAIR AES/EBU, 22AWG/0.34mm², ISTP, LSZH
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 2.10 mm (0.0827 in) | Red & Black |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 6.00 mm (0.236 in) | |
