描述
70065CH

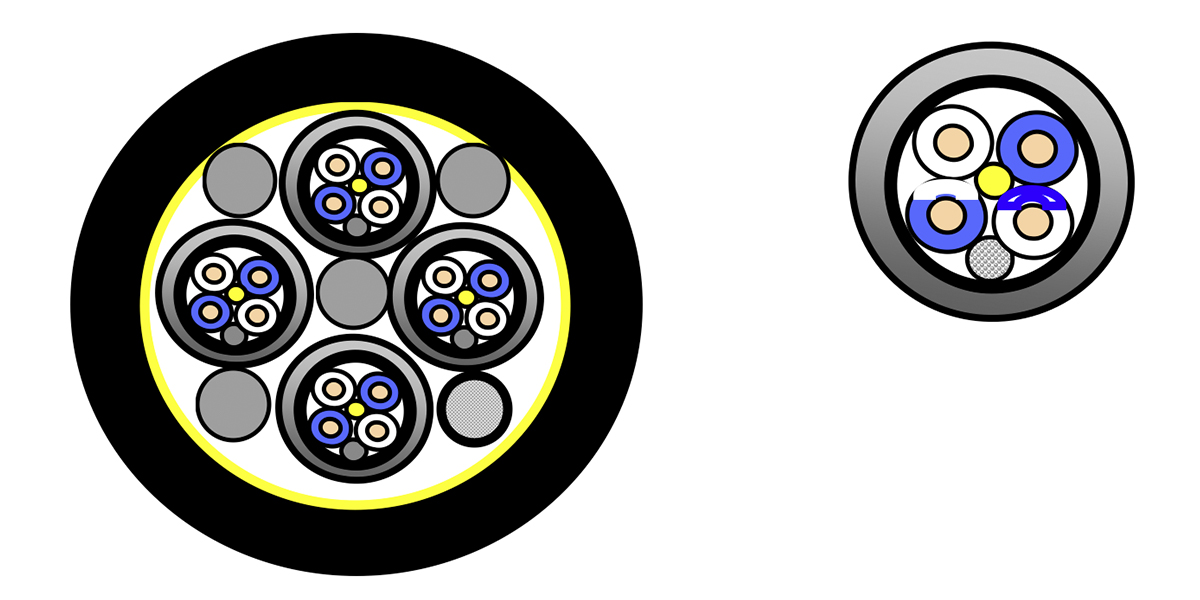

4 x QUAD SNAKE,26AWG, LSZH-C
70065CH 屬Belden線材、UPS 及機櫃產品。傑成系統有限公司（香港防盜）為Belden產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
規格
Conductor
| Size | Stranding | Material |
|---|---|---|
| 26 | Stranded | BC – Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE – Polyethylene | 1.15 mm (0.0453 in) | White & Blue & White/Blue & Blue/White |
| 1, 2, 3, 4 |
Inner Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Inner Shield Table Notes | Aluminum inside |
|---|
Inner Jacket
| Material | Nom. Diameter | Color |
|---|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 3.70 mm (0.146 in) | Gray (like RAL 7001) |
| Inner Jacket Table Notes | Elements are numbered 1-4 for identification |
|---|
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.40 mm (0.0551 in) | 11.70 mm (0.4606 in) |
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield |
|---|---|---|
| 110.0 Ohm/km (33.53 Ohm/1000ft) | 164 pF/m (50.0 pF/ft) | 222 pF/m (67.7 pF/ft) |
Bend Radius
| Installation Min. |
|---|
| 117 mm (4.61 in) |
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| Update and Revision | Revision Number: 0.259 Revision Date: 03-13-2026 |
|---|
