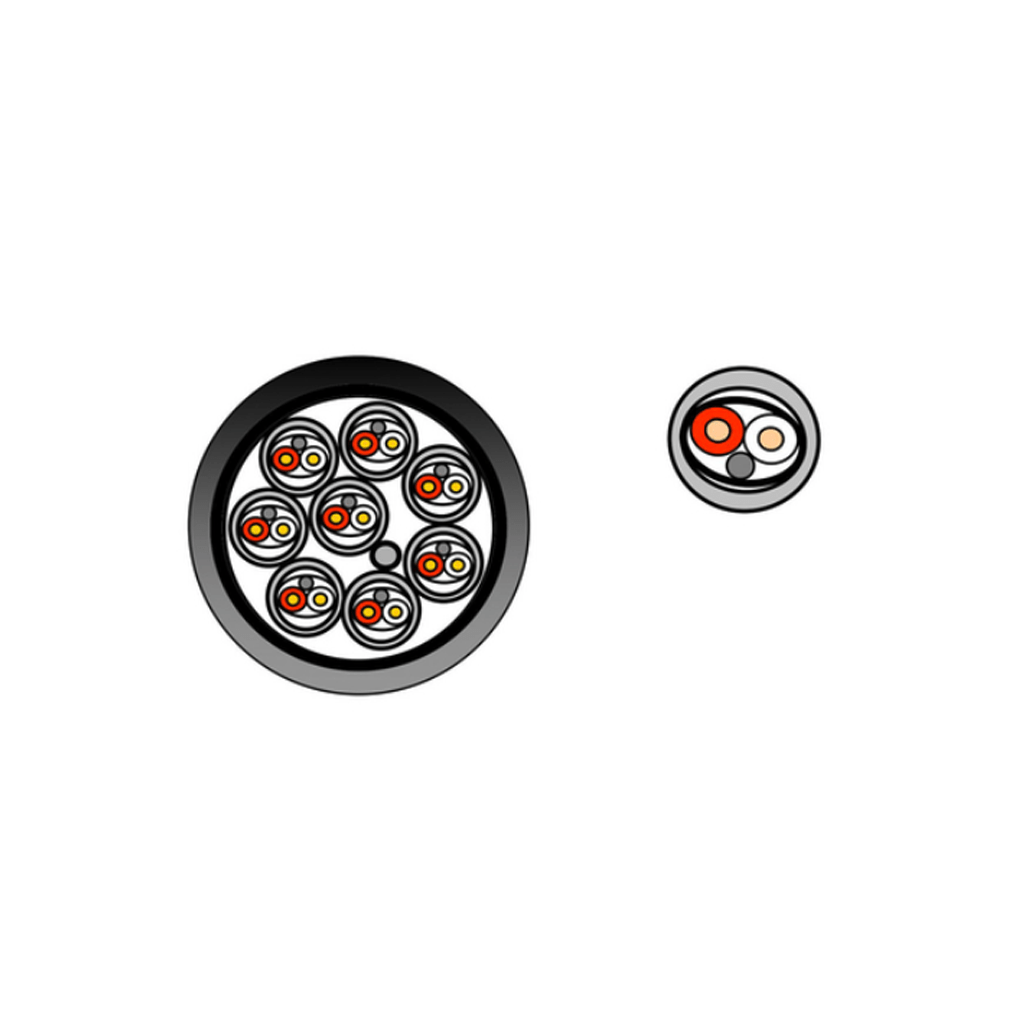

BELDEN 70069CH
2 PAIR AES/EBU, 22AWG, ISTP, LSZH-C
Product Description
DIGITAL AUDIO 2 PAIR AES/EBU, 22AWG/0.34mm², ISTP, LSZH-C
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 2.1 mm (0.083 in) | Red & Black |
| Inner Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Outer Shield | ||
| Material | ||
| Bi-Laminate (Alum+Poly) | ||
| Inner Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 5.3 mm (0.21 in) | |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 13.5 mm | |
