BELDEN 8407

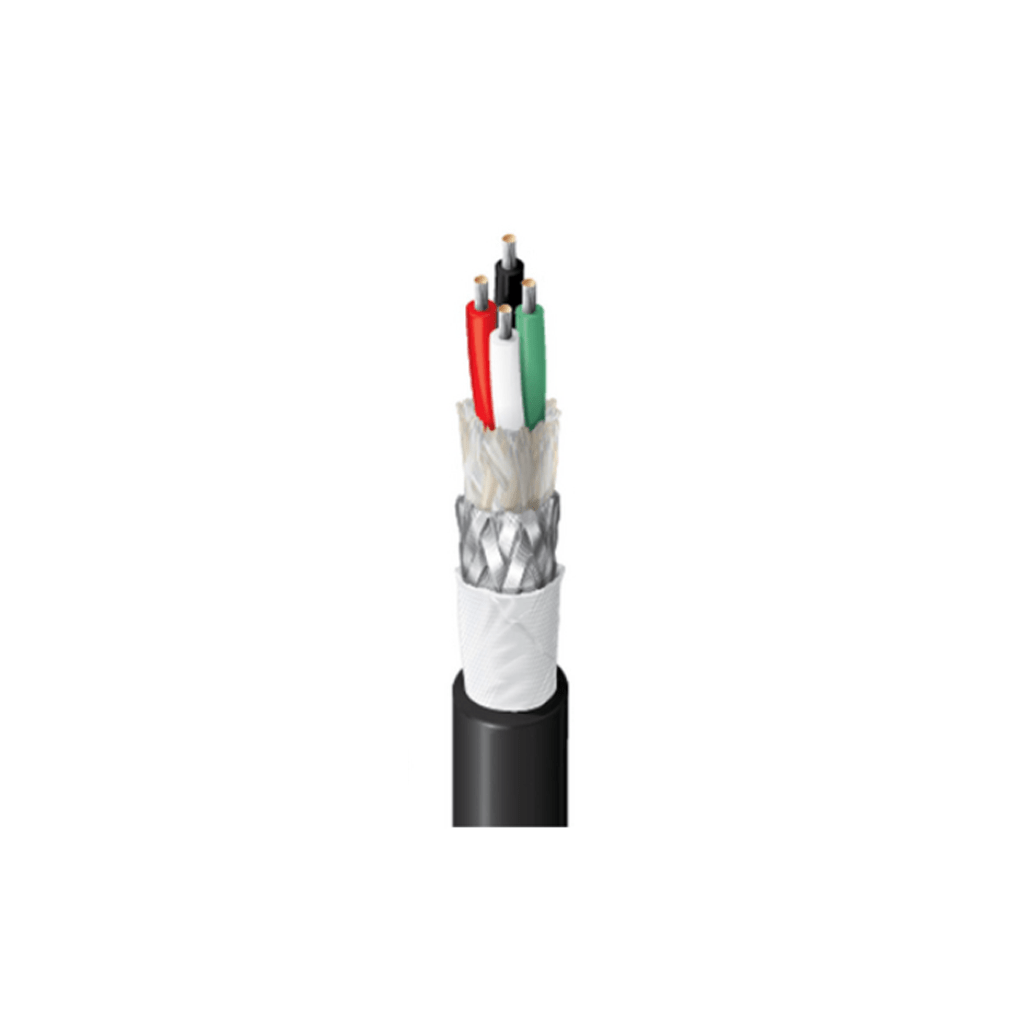

Microphone Cable, Star Quad, 4 C #16 Str TC, Rayon & 85% TC Braid, Cotton Serve, CPE Jkt
Product Description
Microphone Cable, Star Quad, 4 Conductor 16 AWG (65 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, CPE Jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM – Ethylene Propylene Diene Monomer | 0.031 in (0.79 mm) | 0.12 in (3.0 mm) | Black, White, Red, Green |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Rayon® | 20% | ||
| Braid | Tinned Copper (TC) | 85% | ||
