BELDEN 8408

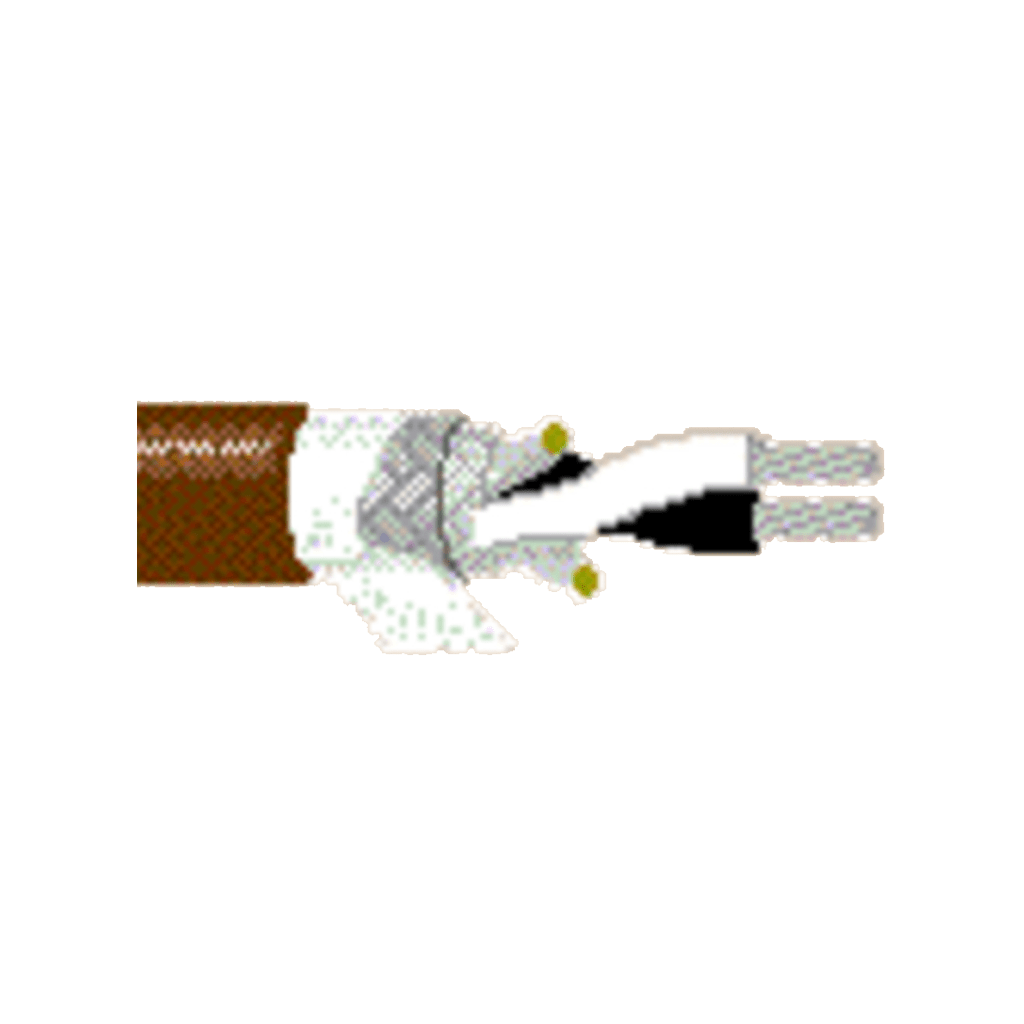

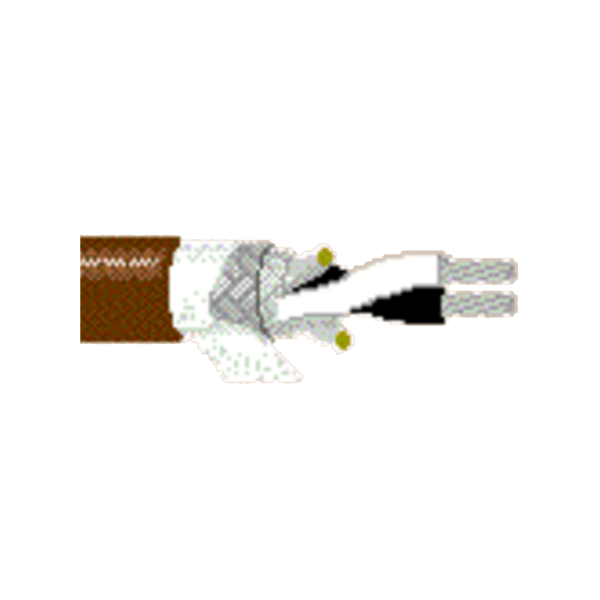

Microphone Cable, 2 Conductor 16 AWG, TC, CPE Jkt
Product Description
Microphone Cable, 2 Conductor 16 AWG stranded (65×34) high-conductivity tinned copper conductors, EPDM rubber insulation, rayon braid, tinned copper braid shield (85% coverage), cotton wrap, CSPE – Chlorosulphonated Polyethylene heavy-duty jacket.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM – Ethylene Propylene Diene Monomer | 0.037 in (0.94 mm | 0.133 in (3.38 mm) | Black, White |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Rayon® | 85% | ||
| Braid | Tinned Copper (TC) | 85% | ||
